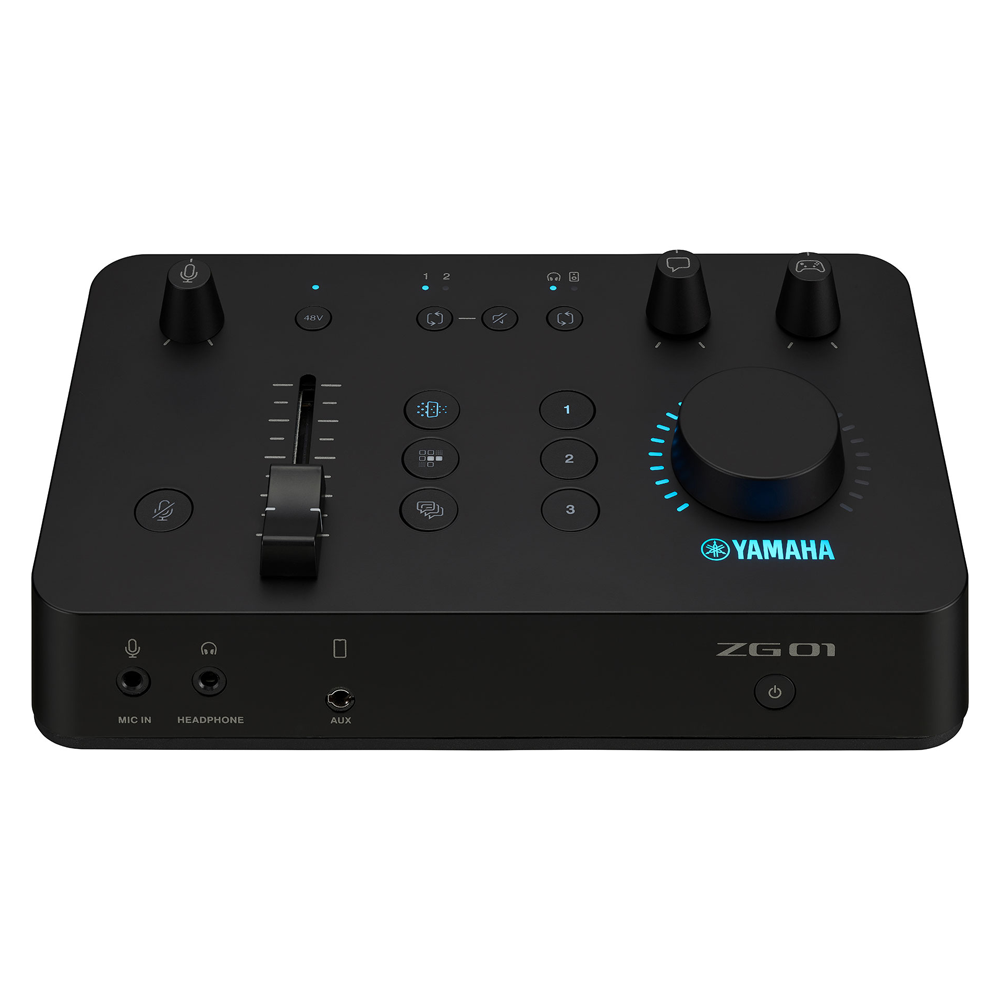

YamahaGaming Stream Audio Mixer with 3D Surround Sound (Model: ZG01)

About

Level up your gaming audio with the Yamaha ZG01, a purpose-built gaming mixer and USB audio interface designed for gamers, streamers, and content creators. Combining Yamaha’s renowned audio expertise with immersive gaming features, the ZG01 gives you complete control over game sound, voice chat, microphone effects, and streaming audio. With built-in 3D surround sound, customizable gaming focus modes, HDMI connectivity, and advanced voice processing, it transforms any gaming setup into a professional command center for competitive play and live streaming.

Product Features

• Purpose-built gaming audio mixer and USB interface
• Immersive 3D surround sound for enhanced spatial awareness
• Gaming Focus Mode and EQ presets for competitive advantage
• Advanced microphone effects including compression, limiter, reverb, pitch shifting, radio voice, echo, and censor beep
• Supports gaming headsets with built-in microphones or professional XLR microphones
• +48V phantom power for condenser microphones
• HDMI 2-input / 1-output switcher with up to 4K/60Hz video pass-through
• Independent control of game audio, voice chat, and microphone levels
• Dedicated effect preset buttons for voice and gaming profiles
• Compatible with Discord, OBS Studio, Streamlabs, and other streaming software
• Dual USB virtual audio devices for flexible routing
• ZG Controller software for advanced customization and preset management
• Compatible with Elgato Stream Deck controllers
• Smartphone connectivity via TRRS input/output
• Plug-and-play USB-C connectivity for Windows and Mac
• Compact desktop design ideal for gaming setups

Product Specifications

Audio & Processing

• Sampling Rate: Up to 48kHz
• Bit Depth: 24-bit
• DSP Processing:
  • ZG Surround
  • Focus Mode / EQ
  • 3D Voice Chat
  • Voice Effects
  • Game Sound Effects
• Effect Presets:
  • 3 Voice Presets
  • 3 Game Presets

Inputs

• 1 × XLR/TRS Combo Mic Input
• +48V Phantom Power Support
• 1 × 3.5mm Headset Mic Input
• 1 × TRRS Smartphone Input/Output
• 2 × HDMI Inputs (Selectable)
• 2 × USB Virtual Audio Inputs

Outputs

• 1 × 3.5mm Headphone/Headset Output
• 1 × Monitor Speaker Output
• 1 × HDMI Output with Audio Pass-Through
• 2 × USB Virtual Audio Outputs

HDMI

• HDMI Switcher: 2-In / 1-Out
• Video Pass-Through: Up to 4K @ 60Hz
• Video Capture: No
• Audio Input: 2-Channel, 24-bit / 192kHz (Max)

Connectivity

• USB Type-C
• Smartphone TRRS Connectivity
• HDMI Audio Routing
• Compatible with:
  • Discord
  • OBS Studio
  • Streamlabs
  • Elgato Stream Deck

Power

• Power Supply: USB-C (5V DC, 1.5A)
• Maximum Power Consumption: 7.5W

Dimensions & Weight

• Dimensions: 195 × 110 × 47.5 mm (W × D × H)
• Weight: 0.82 kg (1.8 lbs)

Operating Conditions

• Operating Temperature: 0°C to 40°C
• Warranty: 12 Months

What's in the Box?

• 1x Yamaha ZG01 Gaming Mixer (Black)
• 1x USB-C to USB-C Cable (1.5m)
• 1x USB-A to USB-C Cable (1.5m)
• 1x Start Guide
• 1x Safety Guide
