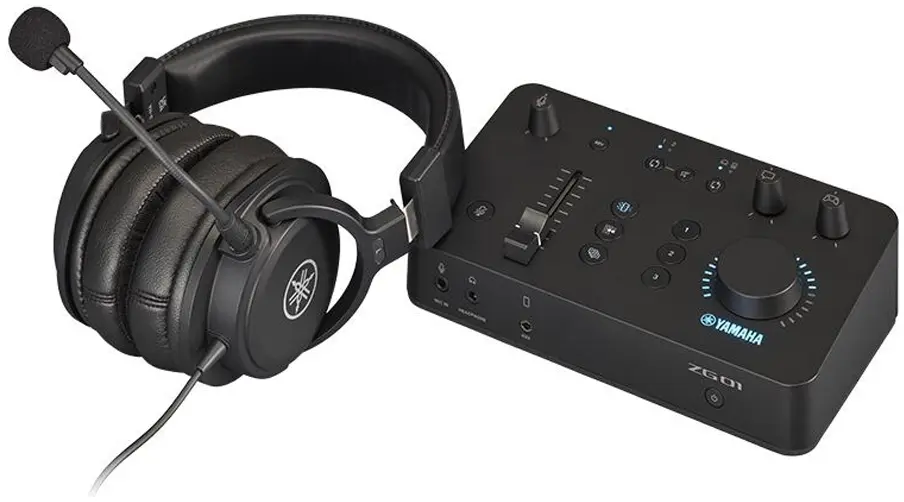

YamahaGaming Stream Audio Mixer Pack with Headset (Model: ZG01-PACK)

About

Level up your gaming, streaming, and voice chat experience with the Yamaha ZG01 PACK. This all-in-one gaming audio solution combines the powerful ZG01 Gaming Mixer with the lightweight YH-G01 Gaming Headset, giving you complete control over game audio, voice chat, microphone effects, and immersive surround sound. Whether you're competing online, streaming to an audience, or chatting with friends, the ZG01 PACK delivers professional-grade audio performance with Yamaha's renowned sound quality.

Product Features

• Complete gaming audio bundle including ZG01 mixer and YH-G01 headset
• Independent control of game sound, voice chat, and microphone levels
• Immersive ZG SURROUND technology for enhanced spatial awareness
• FOCUS MODE/EQ helps highlight important in-game sounds
• 3D CHAT SPACE creates a more natural voice communication experience
• Six programmable effect buttons (3 voice presets and 3 game sound presets)
• Advanced voice effects including compression, reverb, voice change, and more
• HDMI 2-input, 1-output switching with audio pass-through support
• USB-C audio interface for PC and Mac gaming setups
• Supports gaming headsets and professional XLR microphones
• +48V phantom power for condenser microphones
• Compatible with Discord, OBS, Streamlabs, and other streaming software
• Smartphone connectivity via 4-pole TRRS input/output
• ZG Controller software enables deep audio customization and preset management
• Lightweight YH-G01 headset designed for long gaming sessions
• Studio-quality audio reproduction for gaming, streaming, and communication
• High-performance detachable condenser microphone included
• Comfortable mesh ear pads and low-pressure headband design

Product Specifications

ZG01 Gaming Mixer

• Audio & Processing
  • Audio Resolution: 24-bit / 48kHz
  • DSP Effects:
  • ZG SURROUND
  • FOCUS MODE/EQ
  • 3D VOICE CHAT
  • Voice Change Effects
  • Game Sound Effects
  • Preset Buttons: 6 (3 Voice, 3 Game)
• Inputs
  • 1 × Combo XLR/TRS Microphone Input
  • +48V Phantom Power
  • 1 × 3.5mm Headset Microphone Input
  • 1 × 3.5mm TRRS Smartphone Input/Output
  • 2 × HDMI Inputs (switchable)
  • 2 × USB Virtual Devices (Voice & Streaming)
• Outputs
  • 1 × 3.5mm Headphone Output
  • 1 × 3.5mm TRRS Smartphone Output
  • 1 × Stereo Monitor Output
  • 1 × HDMI Output with Audio Pass-Through
  • 2 × USB Virtual Devices (Voice & Speaker)
• Connectivity
  • USB-C Interface
  • HDMI Audio Pass-Through
  • ZG Controller Software Support (Windows & Mac)
• Controls
  • Mute Button
  • HDMI Input Select
  • Monitor Output Select
  • 6 Effect Preset Buttons
• Power
  • Power Requirement: 5V DC, 1.5A
  • Power Consumption: Max 7.5W
• Dimensions & Weight
  • Dimensions: 195 × 110 × 47.5 mm
  • Weight: 0.8 kg

YH-G01 Gaming Headset

• Audio
  • Frequency Response: 20Hz – 20kHz
  • Impedance: 35Ω
  • Sensitivity: 94.4 dB/mW
• Microphone
  • Type: Electret Condenser Microphone
  • Flexible Detachable Boom Design
• Connectivity
  • Connector: 3.5mm 4-Pole TRRS
  • Cable Length: 2m
• Design
  • Lightweight Open-Ear Style Design
  • Breathable Mesh Ear Pads
  • Comfortable Low-Clamp Headband
• Weight
  • Approx. 240g (without cable)
• Warranty: 12 Months

What's in the Box?

• 1x Yamaha ZG01 Gaming Mixer (Black)
• 1x Yamaha YH-G01 Gaming Headset (Black)
• 1x Detachable Boom Microphone
• 1x USB-C to USB-C Cable (1.5m)
• 1x USB-A to USB-C Cable (1.5m)
• 1x Headset Audio Splitter Cable
• Quick Start Guide
• Safety Guide
• Owner's Manual
