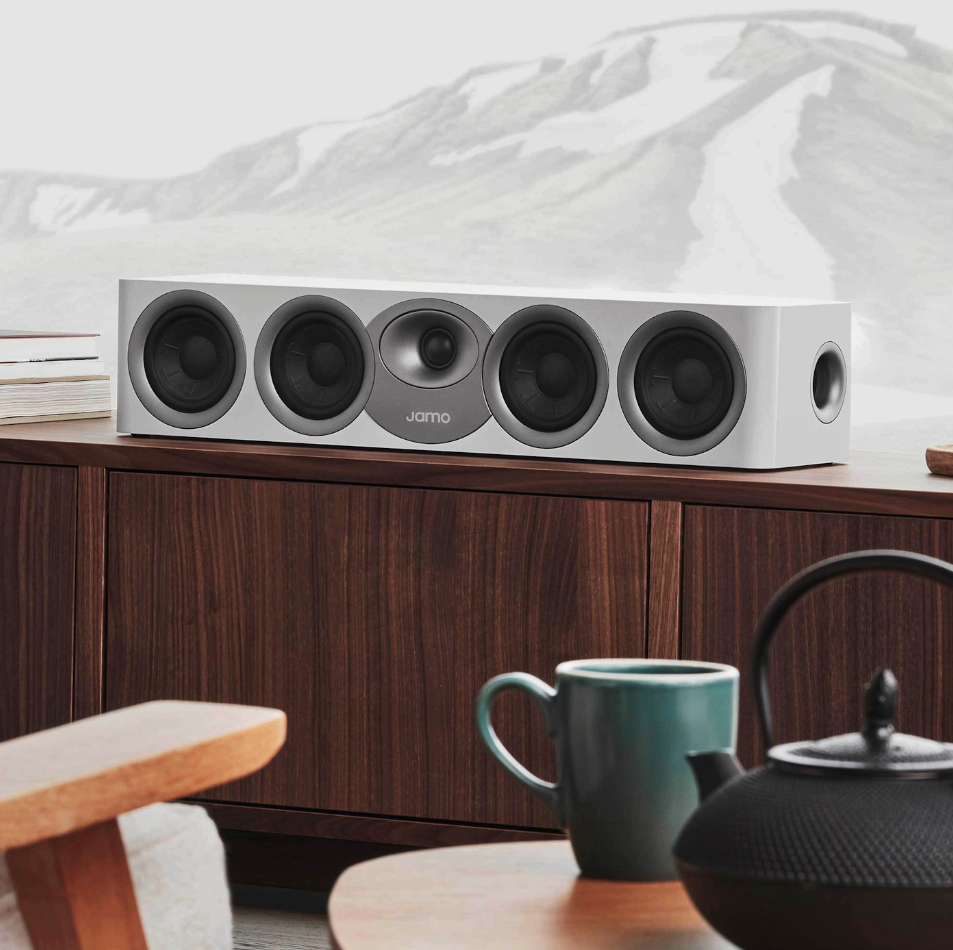

JamoStudio 7 Center Channel Speaker (Model: S43C)

About

Hear every word

An essential element in the reproduction of dialogue and most of the front sound effects, the center channel is critical for catching every nuance of dialogue in your favorite movies, music and games. While other Studio7 speakers are tilted at a seven degree angle, the center channel is not tilted, allowing for better audio direction toward the listener. The grille does however, have a plinth to visually coordinate with the other Studio7 pro­ducts. Thanks to its beautifully considered form, the S7-43C perfectly compliments today’s flat-screen TVs with an unobtrusive footprint.

CRYSTAL-CLEAR HIGH FREQUENCIES

An all-new 1-inch tweeter featuring a copper faraday ring which increases sensitivity and reduces non-linear distortion carries out the high-frequency duties. The tweeter and surround are made from fabric and exhibit excellent distortion characteristics and wide bandwidth for a non-fatiguing yet detailed sound.

Product specifications

• Design 2-Way bass reflex
• High Frequency: 1’’/2.54 cm Vented tweeter with a fabric dome
• Low Frequency: Quad 3.3’’ / 8.4 cm woofers Embossed paper cone with Thor’s Hammer
• Frequency response (±3 dB): 123 Hz - 21 kHz
• Frequency range in bass section (-6 dB): 99 Hz - 30 kHz
• Crossover frequency: 1 770 Hz
• Maximum output (peak sound pressure level at 1 m): 108.2 dB
• Impedance: 4 ohms
• Enclosure Material: Mdf
• Enclosure type: Bass reflex
• Inputs: Single binding posts
• Dimensions (unit) (H x W x D): 12.5 x 60 x 17.1 cm
• Product weight (unit): 6.32 kg
• Warranty: 12 Months
