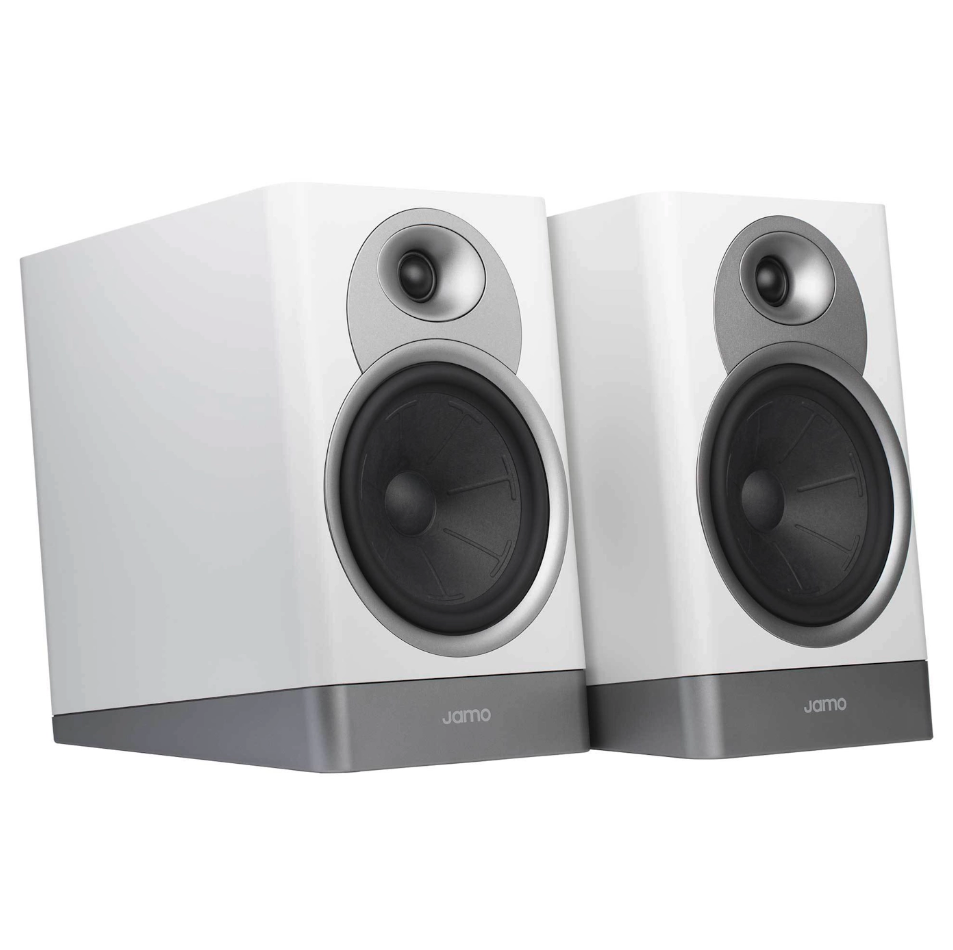

JamoStudio 7 Bookshelf Speaker (Model: S17B)

About

Enjoy your favorite movies, TV-shows, soundtracks and games with high-resolution and room-filling sound.

Our engineers have used top tier components expertly voiced and validated with countless hours to offer you an incredible experience.

A SOUND AS PURE AS SCANDINAVIAN AIR

When a speaker driver produces sound, energy spreads across the speaker's baffle towards the edge of the cabinet. Thanks to the rounded corners of the cabinet, the diffraction is reduced so the energy can dissipate gently and naturally without coloring the signal.

CRYSTAL-CLEAR HIGH FREQUENCIES

An all-new 1-inch tweeter featuring a copper faraday ring which increases sensitivity and reduces non-linear distortion carries out the high-frequency duties. The tweeter and surround are made from fabric and exhibit excellent distortion characteristics and wide bandwidth for a non-fatiguing yet detailed sound.

NATURAL BASS

The bass drivers feature embossed paper cones, high strength motor assemblies incorporating aluminum inductance shorting rings that enhance power handling and lower distortion. The aluminum shorting ring lowers distortion for clean, dynamic bass and increases power handling as the aluminum ring acts as a heat sink. The embossed paper cone with Thor's Hammer detailing increases the rigidity to improve the transient response for that snappy yet natural bass.

Product specifications

• Design:
• Enclosure Type: 2-Way bass reflex
• Drivers:
• Tweeter: 1’’/2.54 cm Vented tweeter with a fabric dome
• Woofer: Single 6.69’’ / 17 cm woofer with embossed paper cone featuring Thor’s hammer technology
• Performance:
• Sensitivity: 87.2 dB @ 2.83 V/1 m
• Frequency Response (±3 dB): 64 Hz - 25 kHz
• Max Low-end Extension (Room Dependent): 40 Hz
• Maximum Output (Peak Sound Pressure Level at 1m): 104.2 dB
• Nominal Impedance: 4 ohms
• Continuous Power Handling: 100 W
• Recommended Amplifier Power: 40-150 W
• Dimensions and Weight:
• Dimensions (H x W x D): 36.5 x 23 x 38 cm / 14.4 x 9 x 15 inches
• Weight: 8.37 kg / 18.5 lbs
• Available Finish:
• Blue Fjord vinyl
• Grey Cloud vinyl
• Included Accessories:
• Rubber feet (8)
• Warranty: 12 Months
