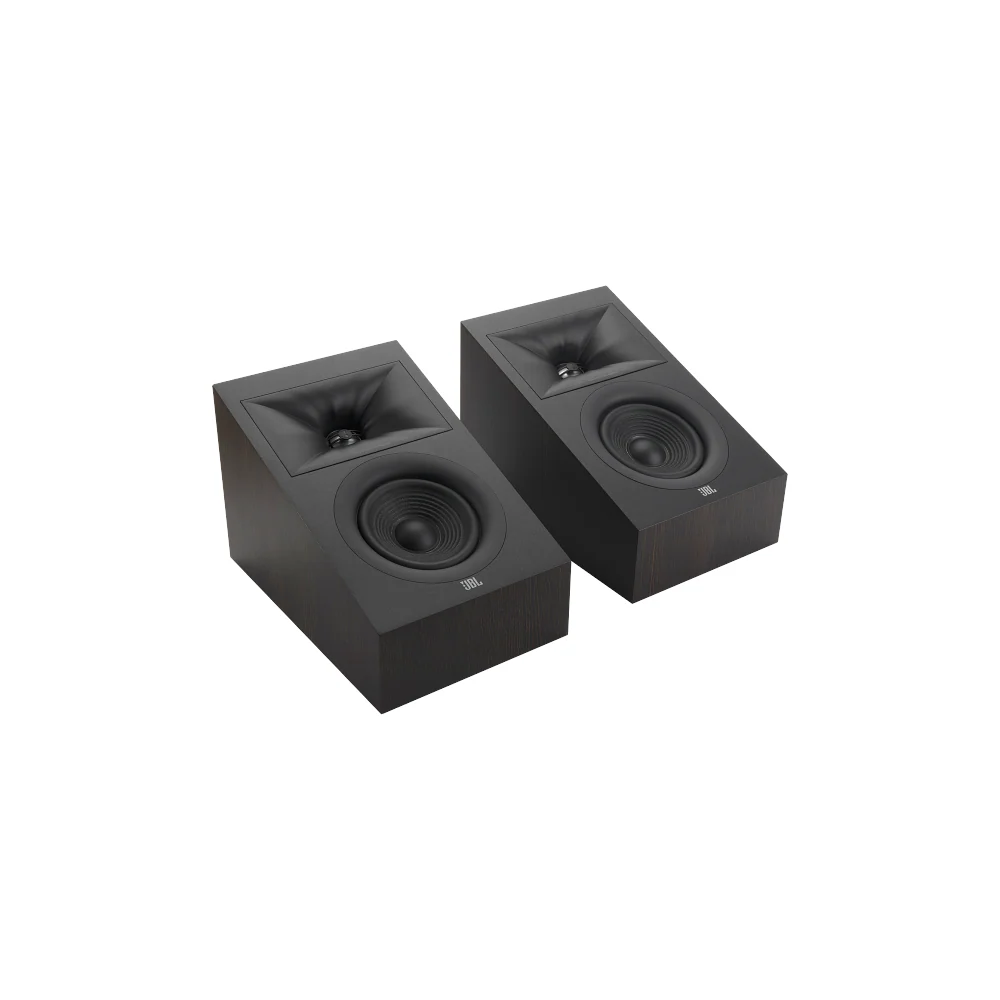

JBLStage 240H High-Performance Two-Way Speakers

About

Designed and engineered in our world-famous Acoustic Engineering Center of Excellence in Northridge, California, Stage 240H is a compact multi-purpose loudspeaker suitable for surround or elevation channel use. With the flip of a switch, it is a Dolby Atmos enabled add-on, or a wall mounted elevation or surround loudspeaker. The 240H features a 2-way way design with Next Generation patented High-Definition Imaging (HDI™) waveguide geometry, 1-inch (25mm) Anodized Aluminum dome tweeter, and a 4.5-inch (114mm) Polycellulose cone woofer that provides deep, signature JBL bass. Available in Espresso or Latte woodgrain finish with solid color front baffles and matching grilles.

Product Features

• Dolby Atmos® Height Module Design – Designed to deliver immersive overhead sound when placed on compatible floorstanding or bookshelf speakers.
• 4.5-inch Polycellulose Ribbed Cone Woofer – Produces deep, accurate, and room-filling bass with improved rigidity for enhanced audio performance.
• 1-inch Anodized Aluminum Tweeter – Delivers crisp, detailed highs for a balanced listening experience.
• Next Generation HDI™ Waveguide – Improves sound directivity, reduces distortion, and ensures consistent audio both on and off axis.
• Switchable Atmos / Surround Mode – Atmos Bypass switch allows the speaker to be used as either a Dolby Atmos height module or a surround speaker.
• Magnetically Attached Grilles – Premium detachable grilles for a clean, modern look.
• Flexible Mounting Options – Includes keyhole wall mounts and a ¼-20 threaded insert for aftermarket mounts.
• 5-Way Binding Posts – Supports high-quality speaker cable connections.
• Anti-Slip Pad – Keeps the speaker securely positioned when placed on compatible JBL speakers.
• Premium Design – Available in stylish Espresso or Latte finishes with floating front baffle design.

Product Specifications

• Speaker Type: Dolby Atmos® Surround Sound Loudspeaker System
• Low Frequency Driver: 4.5-inch (114 mm) Polycellulose Ribbed Cone Woofer
• High Frequency Driver: 1-inch (25 mm) Anodized Aluminum Tweeter
• Waveguide: Next Generation HDI™
• Recommended Amplifier Power: 20 – 150 W
• Frequency Response: 85 Hz – 25 kHz (±6 dB)
• Sensitivity: 87 dB @ 1 m / 2.83 V
• Nominal Impedance: 6 Ohms
• Crossover Frequency: 1.6 kHz
• Enclosure Type: Sealed
• Finish Options: Espresso or Latte

Dimensions (H × W × D)

• 176 × 180 × 270 mm

Weight

• Product Weight: 4.6 kg
• Shipping Weight: 10.4 kg

Shipping Unit:

• Pair

What's in the box?

• 2 x Stage 240H High-Performance Two-Way Loudspeakers (Pair)
• 1 x Anti-Slip Pad
• 1 x Speaker Grille
• 1 x Safety Sheet
• 1 x Quick-Start Guide
