ShellySmart Wi-Fi Gen 3 Dimmer

About

Set the mood with smarter lighting! The Shelly Dimmer Gen3 lets you adjust the brightness of compatible lights remotely or through your existing wall switch. Create schedules, automate your lighting and control your lights from your smartphone, helping you find the perfect ambience for movie nights, dinner parties or winding down after a long day. Its compact design fits behind compatible wall switches, and it can operate without a neutral wire when installed according to the manufacturer's requirements.

Product Features

• Smart Dimming: Adjust the brightness of compatible lights to suit your mood.
• Remote Control: Manage your lighting from your smartphone or compatible smart home system.
• No Neutral Wire Required: Supports installation without a neutral wire, subject to load requirements.
• Smart Scheduling: Set lighting schedules and automate everyday routines.
• Wi-Fi & Bluetooth: Connect wirelessly with Bluetooth support for easier setup.
• Wall Switch Compatible: Control your lights using compatible existing switches or buttons.
• No Hub Required: Connect directly to your Wi-Fi network.

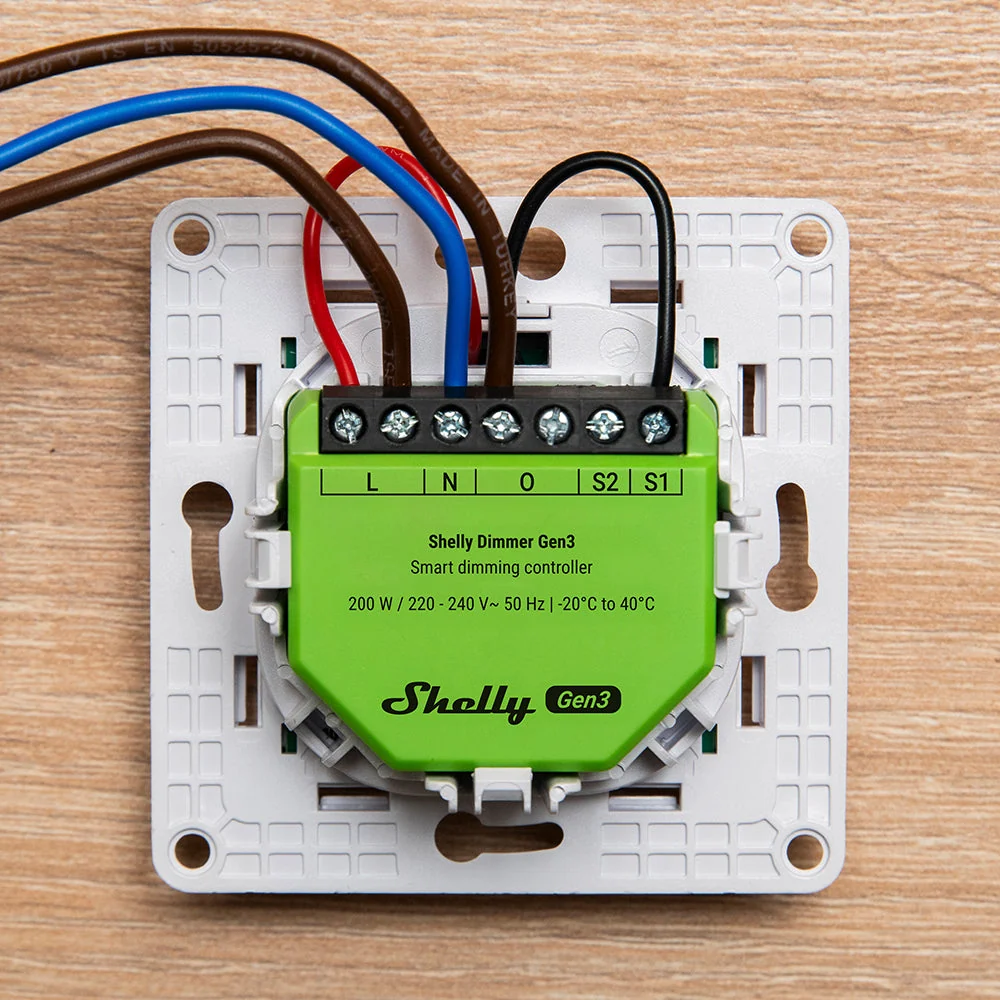

• Compact Design: Installs behind a compatible wall switch or inside a suitable wall box.
• Automation Support: Supports MQTT, webhooks and scripting for advanced customisation.
• Built-In Protection: Includes short-circuit protection and an internal temperature sensor.

Product Specifications

• Brand: Shelly
• Model: Shelly Dimmer Gen3
• Product Type: Smart Wi-Fi Dimmer
• Power Supply: 220–240V AC, 50Hz
• Power Consumption: Less than 1.5W
• Maximum Output Power: 200W
• Dimming Type: Trailing-edge
• Supported Loads: Dimmable LED lamps up to 150W; incandescent and halogen lamps up to 200W; compatible transformers up to 200W/VA, depending on type
• Neutral Wire: Not required for supported installations
• Minimum Load Without Neutral or Bypass: 20W
• Wireless Connectivity: Wi-Fi 802.11 b/g/n and Bluetooth 4.2 BLE
• Wi-Fi Frequency: 2.4GHz
• Wi-Fi Range: Up to 30m indoors and 50m outdoors, depending on conditions
• Bluetooth Range: Up to 10m indoors and 30m outdoors, depending on conditions
• Automation Protocols: MQTT, webhooks and scripting
• Internal Temperature Sensor: Yes
• Short-Circuit Protection: Yes
• Material: Plastic
• Dimensions: Approximately 38.5 × 43.5 × 17mm
• Weight: Approximately 24.3g
• Operating Temperature: -20°C to 40°C
• Mounting: In-wall

What's in the Box?

• 1x Shelly Dimmer Gen3 Smart Wi-Fi Dimmer
