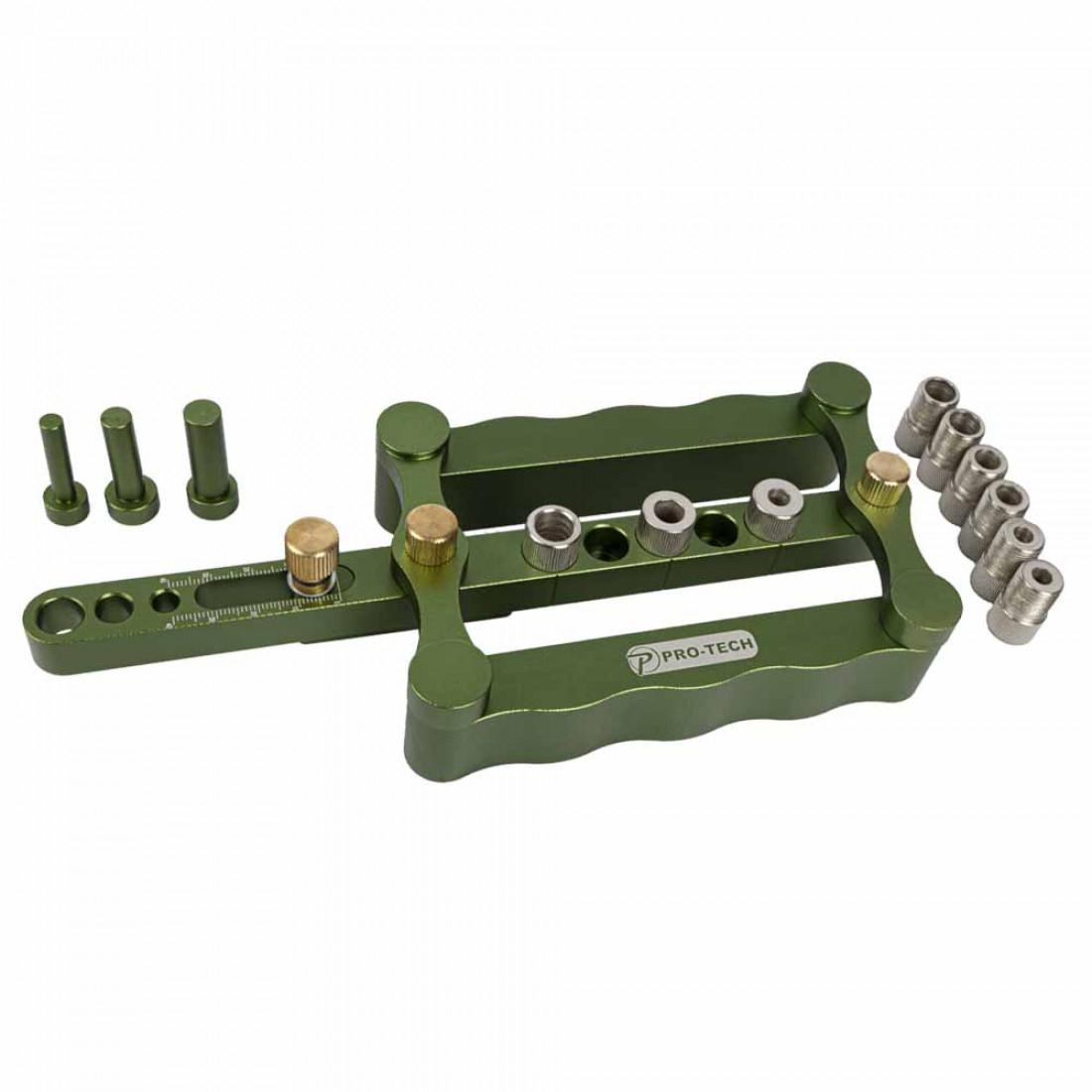

Tool CraftSelf-Centering Doweling Jig (Model: PTDJ06810)

About

Joinery becomes a breeze when you can easily locate and match up drilled holes for dowels. This dowel jig caters for common dowel sizes 6mm, 8mm, 10mm. The strong aluminium body with punch hole locators, brass lock bolts and tempered steel drill bushings makes it worth joining your set of tools. Wood thicknesses ranging from 16mm up to 60mm can easily be centre-scored, punched, and drilled for accurate dowel joining.

Product Features

• User Friendly: extremely simple and easy to use as well as versatile. It is a great tool for both furniture factories and woodworking enthusiasts.
• High-quality and Durable Material: The joinery punch locator is aluminium alloy 6061+ steel HRC50(drill bushing) + brass (nut). High hardness, quality assurance, durability and long service life.
• High Precision: The joinery punch locator provides an improved version and comes with 6mm, 8mm and 10mm bushings and 1mm and 2mm scoring holes for making and marking different sizes of holes.
• Adjustable Stop: The joinery pin locators are specially designed with an adjustable stop which provides drilling accuracy. This tolerates equally spaced holes along the wood.

Product Specifications

• Packaging Type: Hanging Blister
• Weight: 794g
• Colour: Green Aluminium Alloy with Anodic Oxidation Treatment
• Materials: Body - Aluminium Alloy, Tempered Steel Drill Bushings, Brass Lock Nuts, Aluminium Alloy Pin Locators
• Specifications: Clamping Range: 17 - 60mm
• Drill Bushings: 3 x 6mm Drill Bushings, 3 x 8mm Drill Bushings, 3 x 10mm Drill Bushings
• 3 x Indexing Pins - 6mm; 8mm & 10mm ø
• 2 x Scoring Holes - 1 x 1mm & 1 x 2mm
• Adjustable Stop: 0-30mm
