CrealityRaptorX Hybrid Wireless 3D Scanner

About

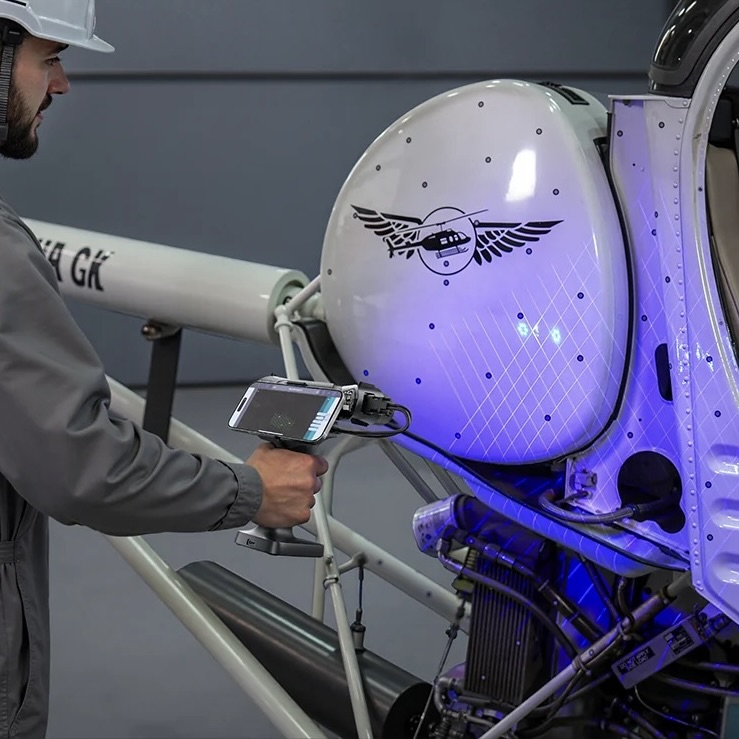

The Creality CR-Scan RaptorX is a revolutionary, world's first wireless hybrid 3D scanner that seamlessly combines blue laser and near-infrared (NIR) structured light technologies. Delivering metrology-grade accuracy down to 0.02mm, this highly portable scanner is built to digitize a vast array of items—from tiny mechanical parts to full-sized vehicles. It features an advanced sensor array of 34 cross and 7 parallel blue laser lines, ultra-fast Wi-Fi 6 wireless data transmission, and a high-capacity rechargeable battery for true freedom of movement. Whether you are working on reverse engineering, quality inspection, or 3D printing, the RaptorX ensures highly efficient, detail-rich scanning indoors and outdoors.

Product Features

• Hybrid Scanning Technology: Seamlessly integrates 34 cross blue laser lines for fast large-object scanning, 7 parallel blue laser lines for high-definition details, and NIR structured light for markerless scanning.
• Ultra-High Precision: Offers metrology-grade accuracy up to 0.02mm, making it ideal for professional inspection and reverse engineering.
• Broad Scanning Range: Effortlessly scans objects of almost any size, ranging from tiny 5 x 5 x 5 mm³ miniatures to massive objects up to 4000 x 4000 x 4000 mm³.
• True Wireless Portability: Features lightning-fast Wi-Fi 6 AX6000 data transmission (4.7Gbps) and a built-in 35,400mWh battery that safely charges to 80% in just 1.5 hours.
• Seamless Color & Details: Equipped with a 2.3-megapixel 3D imaging camera, capturing 24-bit full-color RGB textures across all scanning modes.
• Outdoor & Material Adaptability: The powerful blue laser handles bright outdoor environments (up to 100,000 lux) and can easily scan black or reflective metal surfaces without the need for scanning spray.
• One-Click Software Integration: Includes CrealityScan software and allows one-click export of your 3D point clouds to professional platforms like Geomagic Control X, Geomagic Design X, and Verisurf Inspect.

Product Specifications

• Scanner Type: Handheld Wireless Hybrid 3D Scanner
• Light Sources: 34+7 Blue Laser Lines & NIR (Infrared Binocular Structured Light)
• Accuracy: Up to 0.02 mm
• Scanning Speed: Up to 1,020,000 points/s (Laser mode at 60fps) / up to 30fps (NIR mode)
• Scanning Volume Range: 5mm to 4,000mm
• Camera: 2.3 Megapixel 3D Imaging Camera with 9-element glass lens
• Color Capture: 24-bit RGB full-color scanning
• Battery Capacity: 35,400mWh (Airplane-safe)
• Connectivity: Wi-Fi 6 AX6000 (Low latency 10ms), USB 3.0 Type-C
• Dimensions & Weight: 30 x 30 x 30 cm
• Packaged weight: ~5 kg (Total Box Weight)

What's in the box?

• 1x RaptorX Hybrid Wireless 3D Scanner
• User Manual
