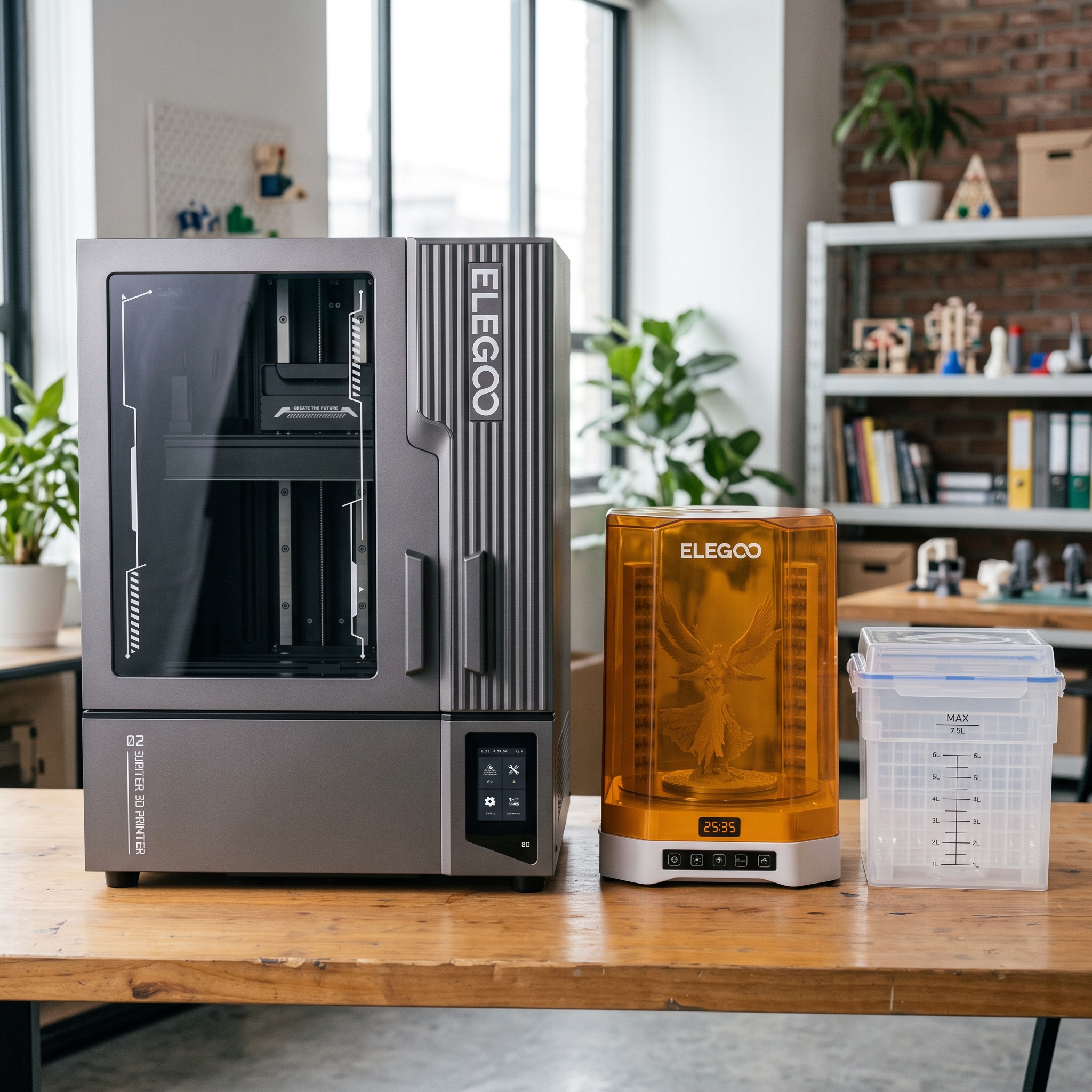

ELEGOOJupiter 2 Large Format Resin 3D Printer with Resin Wash and Curing Station

About

ELEGOO is a globally recognised leader in consumer and prosumer 3D printing, founded by a team of engineers dedicated to making advanced manufacturing accessible to everyone. Known for combining innovation, reliability, and affordability, ELEGOO develops printers that empower creators - from beginners and educators to professional designers and engineers.

The Jupiter series represents ELEGOO’s flagship line of large-format resin (MSLA) 3D printers, engineered to deliver industrial-scale production capabilities, ultra-high precision, and consistent performance for professional users.

Print it. Wash it. Cure it. Show it off. Take your resin 3D printing setup to the next level with the ELEGOO Jupiter 2 16K Large-Format Resin 3D Printer bundled with the Mercury Plus V3.0 Washing & Curing Station. The Jupiter 2 combines a huge 302 × 162 × 300mm build volume with stunning 16K detail, automatic levelling, smart resin management and heated resin control, making it ideal for everything from large prototypes and detailed models to batch production. Once your prints are ready, the Mercury Plus V3.0 takes over with a spacious 7.5L cleaning capacity, dual washing methods and 360° UV curing. Together, they create a streamlined print-to-finish workflow for makers, professionals, designers and serious resin printing enthusiasts.

Product Features

ELEGOO Jupiter 2 16K Resin 3D Printer

• Large-Format Printing: Create oversized models or print multiple smaller pieces in one job.
• Stunning 16K Detail: Produces highly detailed prints with smooth surfaces and fine textures.
• Huge Build Volume: Generous printing space gives you more freedom to bring ambitious designs to life.
• Automatic Levelling: Simplifies setup and helps achieve a consistent first layer.
• Smart Resin Management: Automatic resin feeding and recycling helps streamline longer print jobs.
• Heated Resin Tank: Smart heating maintains resin at an optimal temperature for improved flow and print consistency.
• Live Print Monitoring: Built-in camera enables remote monitoring and timelapse functionality.
• Intelligent Printing: Smart sensors and monitoring features help detect potential printing issues.
• High-Precision Printing: Advanced optical and mechanical systems deliver consistent results across the build area.
• Wi-Fi & USB Connectivity: Transfer files and manage your printer conveniently.
• Touchscreen Control: Intuitive interface makes setup, monitoring and adjustments simple.
• Wide Resin Compatibility: Designed to work with a range of 405nm UV photopolymer resins.

ELEGOO Mercury Plus V3.0 Washing & Curing Station

• 2-in-1 Post-Processing: Wash and cure your resin prints using one streamlined machine.
• Large 7.5L Cleaning Capacity: Ideal for larger models and batch processing.
• Dual Washing Methods: Clean prints using the basket or hanging build-plate method.
• Large Print Support: Accommodates build plates up to 10 inches.
• 360° UV Curing: Rotating turntable provides thorough, all-round exposure.
• 24 x 405nm UV LEDs: Delivers powerful and even UV curing.
• Adjustable Wash & Cure Times: Set cycles for up to 30 minutes using the touch panel.
• Anti-UV Protection: Protective cover blocks 99.9% of UV rays.
• Safety Shut-Off: Curing automatically stops when the protective cover is removed.
• Wide Printer Compatibility: Suitable for most LCD, DLP and SLA resin 3D printers.

Product Specifications

ELEGOO Jupiter 2 16K Resin 3D Printer

General

• Product: ELEGOO Jupiter 2 Large Format Resin 3D Printer
• Printer Technology: MSLA
• LCD: 14-inch 16K monochrome LCD
• Resolution: 15120 × 6230
• XY Resolution: 20 × 26μm
• Build Volume: 302.40 × 161.98 × 300.00mm
• Layer Height: 0.01–0.20mm
• Maximum Print Speed: Up to 90mm/h
• Z-Axis Accuracy: 0.02mm
• UV Wavelength: 405nm

Optical & Mechanical System

• Light Source: COB light source + Fresnel collimating lens
• Light Distribution: Uniform high-intensity exposure
• Build Plate: Laser-engraved aluminium
• Resin Tank: Smart heated tank with quick-lock design
• Resin Temperature: Smart heating up to 30°C
• Levelling: Automatic levelling / manual levelling with real-time data feedback
• Z-Axis: Reinforced precision Z-axis
• Rails: Dual linear rails
• Construction: Reinforced metal chassis
• LCD: Modular quick-swap design

User Interface & Connectivity

• Touchscreen: 4.0-inch capacitive touchscreen
• Connectivity: Wi-Fi and USB
• File Transfer: Wi-Fi, USB and SatelLite
• Remote Monitoring: Yes
• Built-In Camera: Yes
• Timelapse: Yes
• Supported File Formats: STL, OBJ
• Slicer Compatibility: CHITUBOX and supported resin slicers

Smart Features

• Automatic resin feeding
• Automatic resin recycling
• Resin shortage detection
• Resin bottle monitoring
• Resin temperature detection
• LED temperature detection
• Power loss recovery
• Chamber monitoring camera
• Smart print monitoring
• Automatic levelling
• Remote print monitoring

Resin Compatibility

• 405nm UV photopolymer resin
• Standard resin
• ABS-like resin
• Tough resin
• Water-washable resin
• Plant-based resin
• Engineering resin
• Dental resin
• Model resin

ELEGOO Mercury Plus V3.0

• Product: ELEGOO Mercury Plus V3.0
• Function: Resin Washing & Curing, 2-in-1
• Cleaning Capacity: 7.5L
• UV Wavelength: 405nm
• UV LEDs: 24
• Maximum Wash Volume – Basket Mode: 230 × 135 × 260mm
• Maximum Wash Volume – Hanging Mode: 214 × 135 × 180mm
• Build Plate Compatibility: Up to 10 inches
• Curing: 360° rotating turntable
• Maximum Wash/Cure Time: 30 minutes
• Control: Touch panel
• Safety: Anti-UV cover with automatic safety shut-off
• Compatibility: LCD, DLP and SLA resin 3D printers
• Power Supply: External DC power adapter

What's in the Box?

ELEGOO Jupiter 2 16K Resin 3D Printer

• 1x Jupiter 2 3D Printer
• 1x Bottle Cap Module
• 1x Resin Bottle
• 1x Auto Resin Feeding Cartridge
• 1x Build Plate
• 1x Resin Tank
• 1x USB Flash Drive
• 1x Mask
• 1x Drip Tray
• 1x Funnel
• 1x Scraper
• 1x Auto Resin Feeding & Recycling Accessory Box
• 1x Power Cable
• 1x Tool Kit
• 1x User Manual

ELEGOO Mercury Plus V3.0

• 1x Mercury Plus V3.0 Machine
• 1x Cleaning Bucket
• 1x Cleaning Basket
• 1x 360° Rotating Curing Turntable
• 2x Adjustable Brackets
• 1x UV-Blocking Protective Cover
• 1x Power Adapter
• 1x Tool Kit
• 1x User Manual
