VanguardEndeavor HD 82A Spotting Scope

About

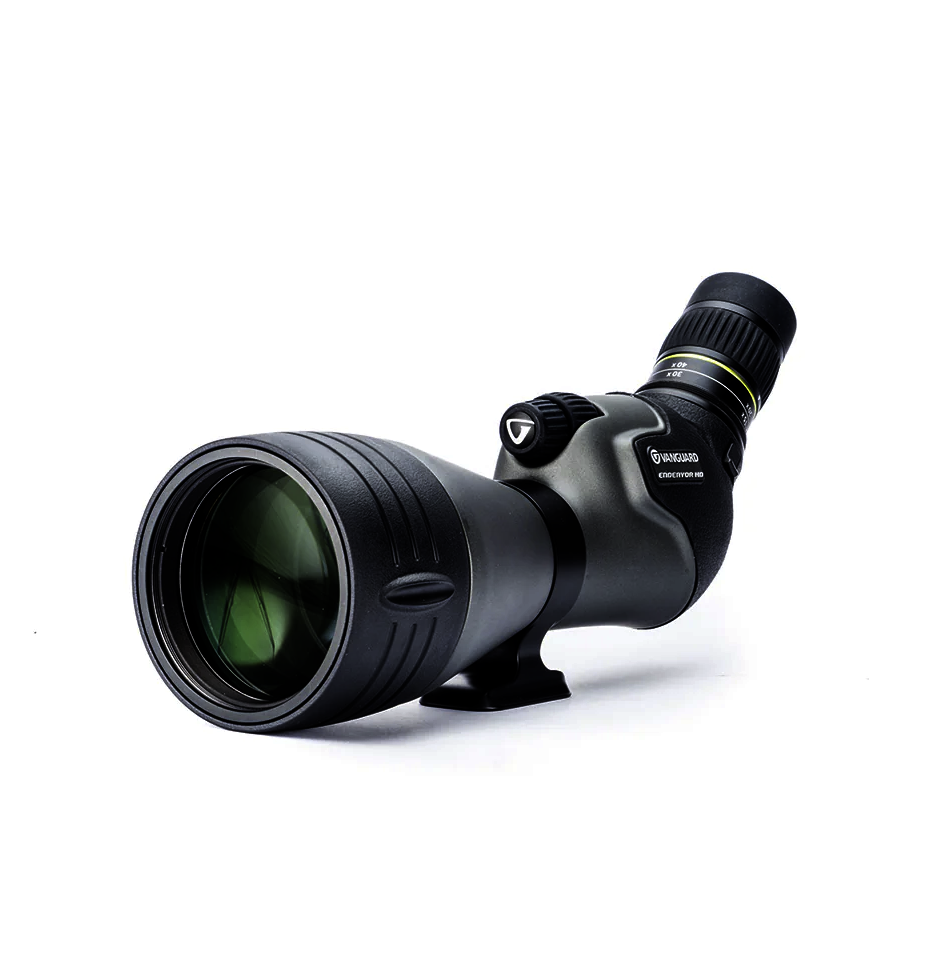

The angled view Endeavor HD 20-60x82 Spotting Scope combines a nitrogen-filled magnesium housing and a fully multicoated optical path to create a well-equipped zoom optic for intermediate to long-range observation. Endeavor HD series features an extra-low dispersion (ED) lens system and phase-corrected BaK4 prisms, which maximize light transmission and produce color faithful images that are rich with contrast.

This version of the Endeavor HD spotting scope includes a 20-60x zoom eyepiece featuring a rubber zoom dial. A 1:3 zoom ratio and 2.1-1.0° angle of view complement the eyepiece's long 19mm eye relief and rubber eyecup, which help to provide additional viewing comfort for long-duration observations.

In addition to the image quality and weather-sealed construction, the Endeavor HD includes several features that enhance the scope's functionality. A stacked dual-focus mechanism enables the observer to make fine and coarse focus adjustments. The tripod mounting foot has a standard 1/4" socket and is compatible with Vanguard tripods that accept the universal mounting shoe. An integrated sunshade and included custom fit raincoat carrying case help to make the Endeavor HD a full-featured spotting scope for outdoor use.

Product Features

• Optical Performance
• 20-60x magnification, 82mm objective
• Extra-low dispersion glass elements, BaK4 prisms
• Fully multicoated optics
• 2.1-1.0° angle of view
• 6m close focus distance (at 20x)
• Use and Handling
• Angled view eyepiece is inclined 45° from the objective lens
• Separate coarse / fine focus controls
• Interchangeable eyepiece mount
• Tripod mounting foot
• Construction Details
• Nitrogen-filled fogproof / waterproof housing
• Magnesium body with textured rubber armor

• Built-in sunshield

Product Specifications

• Body Material: Magnesium alloy

• Color: Black

• Diameter of objectives: 82mm

• Dimensions (L x W): 380 x 180 mm

• Eye Cup Twist out

• Eye Relief

• Features: 1177,1163,1176,1162

• Field of View: @1000m 37~ 17

• Field of View: @1000 YDS 110 ~ 52

• Focus System: Center focus

• Illuminated Reticle: No

• Lens coating: Fully multi coated

• Maximum Power: 60x

• Minimum Power: 20x

• Ocular Adjustment: ± 0

• Phase coating: YES

• Power: 20 ~ 60

• Prism Type: BaK4 prism

• Relative Brightness: 16.8~1.8

• Series: Endeavor HD

• Twilight Factor: 40.4~70.1

• Type: Angled

• View Angle: 2.1 ~ 1.0

• Waterproof: Yes

• Weight (gram): 1.8 kg

• 12-month warranty
