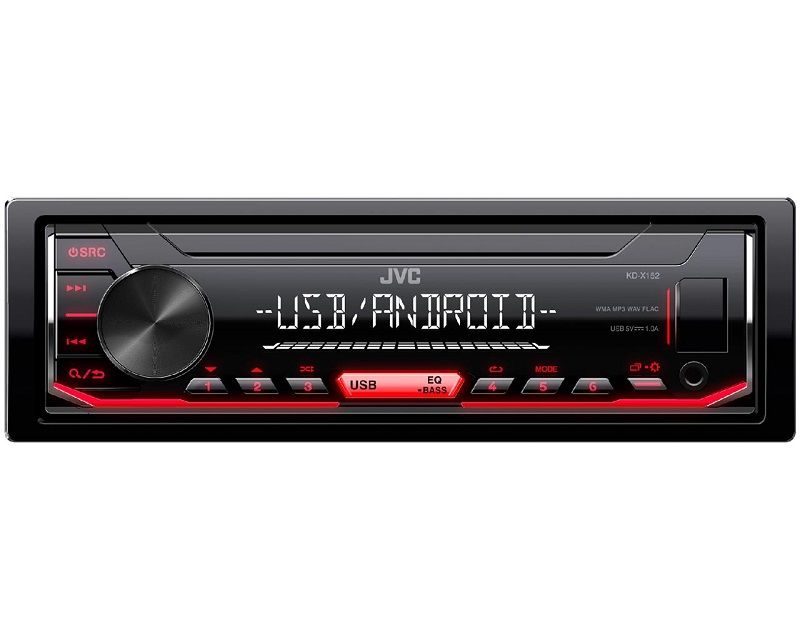

JVCDigital Media Receiver with Front USB/AUX Input (Model: KD-X152M)

About

The JVC KD-X152M is a compact single-DIN digital media receiver designed for modern in-car audio upgrades without a CD drive.

It focuses on USB music playback, AUX input, strong audio tuning control, and reliable radio performance, making it a solid budget-friendly upgrade for OEM car sound systems.

Product Features

• Digital Media Receiver (No CD Mechanism) – USB + AUX playback only
• High Power Output: Up to 50W × 4 max output
• 15-Preset EQ + 3-Band EQ: Includes “drvn EQ” tuning presets
• FLAC Audio Support: Lossless music playback up to 16-bit/48kHz
• USB Smartphone Playback: Plug-and-play music from Android devices
• USB Charging Support: Up to 1A output
• FM/AM Radio with RDS: Station info display support
• Subwoofer Output Control: Adjustable level and crossover settings
• Short Chassis Design: Easier installation in tight dashboard spaces
• Steering Wheel Control Ready: Compatible with factory controls (adapter required)
• Detachable Face Panel: Anti-theft removable front panel

Product Specifications

Audio Performance

• Max Power Output: 50W × 4
• Continuous Power: ~22W × 4 (clean RMS-style output)
• Amplifier Type: MOS-FET built-in amplifier
• EQ System: 3-band parametric EQ + 15 preset sound modes
  • Sound Enhancements: Loudness control (low/high/off)
  • Bass boost
  • Digital Track Expander (sound widening)
• Subwoofer Output: Yes (adjustable level + low-pass filter)

Media & Playback

• Supported Formats: MP3 / WMA / WAV / FLAC
• FLAC Support: Up to 16-bit / 48kHz lossless audio
• Playback Source: USB front port + AUX input
• USB Current Output: ~1A (phone charging capability)

Radio & Tuner

• FM Range: 87.5 – 108 MHz
• AM Range: MW + LW bands supported
• Preset Stations: 18 FM + 6 AM
• RDS Support: Yes (station name + info display)

Build & Installation

• Form Factor: Single DIN
• Chassis Type: Short-depth design (100mm)
• Face Panel: Detachable
• Display: VA LCD screen
• Illumination: Red key lighting
• Weight: ~0.6 kg
• Dimensions: 182 × 53 × 100 mm

Connectivity

• Front USB input
• Front AUX input
• RCA pre-out (rear/subwoofer switchable)
• Steering wheel remote support (via adapter)
• Warranty: 12 months

What's in the Box?

• 1x Owner's manual
• 1x Radio unit
• 1x Detachable face
• 1x Carrying Case
• 1x JVC ISO Cables
