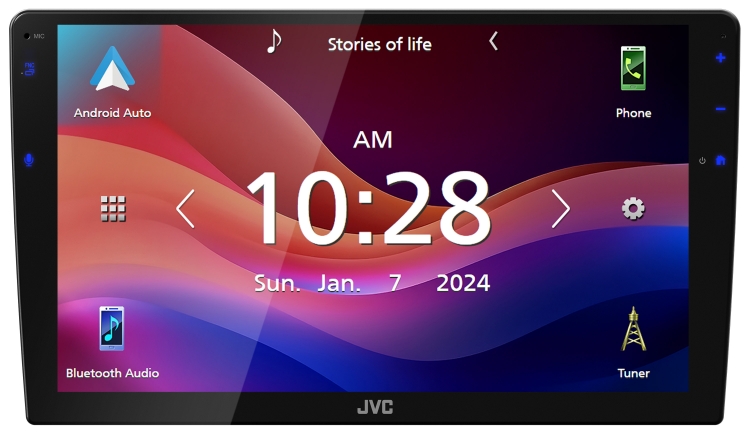

JVC9" Digital Media Car Receiver (Model: KW-M80AW)

About

Upgrade your in-car entertainment with the JVC KW-M80AW 9-inch Digital Media Receiver. Its large capacitive touchscreen puts music, calls, navigation and compatible smartphone functions at your fingertips, while built-in Wi-Fi enables wireless Apple CarPlay and Android Auto. Add Bluetooth connectivity, USB media playback, a 13-band equaliser and rear-view camera support for a feature-packed addition to your vehicle.

Product Features

• 9-Inch Touchscreen: Large WSVGA capacitive display for clear, intuitive control.
• Wireless Apple CarPlay: Connect compatible iPhones wirelessly or via USB.
• Wireless Android Auto: Access compatible Android smartphone features wirelessly or via USB.
• Built-In Wi-Fi: Enables wireless smartphone integration and mirroring features.
• Bluetooth Connectivity: Supports hands-free calling and wireless audio streaming.
• 13-Band Equaliser: Fine-tune your audio to your preferred sound.
• Time Alignment: Adjusts speaker timing according to speaker position and listening location.
• USB Media Playback: Supports a wide selection of audio and video formats.
• Rear Camera Input: Connect a compatible rear-view camera.
• 2.1A USB Charging: Provides high-current charging for compatible devices.
• Gesture Touch Control: Use intuitive touch gestures for selected functions.
• Steering Wheel Ready: Compatible with steering-wheel controls using supported connections/adapters.
• Short Chassis: Compact rear chassis helps simplify installation and cable management.

Product Specifications

• Brand: JVC
• Model: KW-M80AW
• Product Type: Digital media receiver / monitor
• Screen Size: 9"
• Display: WSVGA, 1024 × 600
• Touchscreen: Capacitive
• Bluetooth: Yes, Version 5.0
• Wi-Fi: Built-in
• Apple CarPlay: Wireless / USB
• Android Auto: Wireless / USB
• Android Mirroring: Wireless
• iPhone Mirroring: Wireless
• USB: 1 × high-speed USB
• USB Charging: 2.1A
• Audio Output: 50W × 4 maximum / 22W × 4 full bandwidth
• Equaliser: 13-band graphic EQ
• Preset EQ: 7 presets + 3 user settings
• Audio Formats: MP3, WMA, WAV, AAC, FLAC
• Video Formats: MPEG-1/2/4, H.264, WMV, MKV
• FM Range: 87.5–108.0MHz
• AM Range: 531–1,611kHz
• Preset Stations: 36
• Rear Camera Input: Yes
• Video Output: 1 × RCA
• Pre-Outs: 2 + mono subwoofer output
• Installation Size: 229 × 130.5 × 100.8mm
• Weight: 1.33kg
• Chassis: Short chassis

What's in the Box?

• 1x JVC KW-M80AW Digital Media Receiver
• Hands-Free Microphone
• Wiring / Installation Accessories
• Installation & User Documentation
