About
The new AMD Ryzen 7000 Series processors with AMD 3D V-Cache technology offer incredible performance for the most demanding gamers and creators. The latest AMD Ryzen 7000 processors let you enjoy the benefits of next-gen AMD 3D V-Cache technology for low latency and even more game performance. Whether you're playing the latest titles or revisiting a classic, the AMD Ryzen 7000 Series processors are a gaming powerhouse with high-performance "Zen 4" cores. With up to 8 cores, 16 threads, boost clocks of up to 5.0GHz and up to 104MB of on-chip memory, AMD Ryzen 7000 Series processors deliver game-changing performance.
This means that enthusiasts can harness the power of the ultimate gaming and creator performance in one chip. No workload is off limits with the AMD Ryzen 7000 series and 3D V-Cache technology. Whether you are 3D rendering a high poly scene, exporting massive video files, or visualizing an architectural dream, AMD Ryzen 7000 Series processors are built to beat the clock. With time-saving connectivity like PCIe 5.0 storage support, ultra-fast Wi-Fi 6E, AMD EXPO technology, up to 16 processing threads, and dedicated video accelerators, elevate your experience with AMD Ryzen 7000 Series processors. When your PC has the world's most advanced desktop processor for gamers, you can focus on what really matters.
Product Features
- Boost Clock up to 5.0GHz
- 8 Cores / 16 Threads
- Latest AM5 Platform
- PCIe 5.0 and DDR5 Support
- AMD Radeon Graphics
- AMD EXPO Technology
- AMD Ryzen Technologies
- SPECIFICATIONS:
- Platform: Desktop
- Product Line: AMD Ryzen 7 Processors
Product Specifications
Processor Series & Architecture
- Series: Ryzen 7000 Series
- Former Codename: Raphael AM5
- Processor Architecture: Zen 4
- Form Factor: Desktop, Boxed Processor
- Market Segment: Enthusiast Desktop
- Regional Availability: Global
- AMD PRO Technologies: No
CPU Core & Thread Configuration
- Number of CPU Cores: 8
- Number of Threads: 16
- Multithreading (SMT): Yes
Clock Speeds
- Base Clock: 4.2 GHz
- Max Boost Clock: Up to 5.0 GHz
Cache
- L1 Cache: 512 KB
- L2 Cache: 8 MB
- L3 Cache: 96 MB
Power & Thermal
- Default TDP: 120W
- Max Operating Temperature (Tjmax): 89°C
- Thermal Solution (PIB): Not included
- Recommended Cooler: Liquid cooler recommended
Fabrication & Die Details
- CPU Core Technology: TSMC 5nm FinFET
- I/O Die Technology: TSMC 6nm FinFET
- CPU Compute Die (CCD) Size: 71 mm²
- I/O Die (IOD) Size: 122 mm²
- Package Die Count: 2
Overclocking & Performance Technologies
- AMD EXPO™ Memory Overclocking Technology: Yes
- Precision Boost Overdrive: Yes
- Curve Optimizer Voltage Offsets: Yes
- AMD Ryzen™ Master Support: Yes
- CPU Boost Technology: Precision Boost 2
Socket & Chipset Compatibility
- CPU Socket: AM5
- Supporting Chipsets:
- A620
- X670E / X670
- B650E / B650
- X870E / X870
- B840 / B850
Instruction Set & Extensions
- Instruction Set: x86-64
- Supported Extensions:
- AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX+, SHA,
- SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
Graphics Capabilities
- Graphics Model: AMD Radeon™ Graphics
- Graphics Core Count: 2
- Graphics Frequency: 2200 MHz
- USB Type-C® DisplayPort™ Alternate Mode: Yes
Memory Support
- System Memory Type: DDR5
- System Memory Subtype: UDIMM
- Memory Channels: 2
- Max Memory: 128 GB
- Max Memory Speed:
- 2x1R DDR5-5200
- 2x2R DDR5-5200
- 4x1R DDR5-3600
- 4x2R DDR5-3600
- ECC Support: Yes (requires motherboard support)
Connectivity
- Native USB 3.2 Gen 2 (10Gbps): 4
- Native USB 3.2 Gen 1 (5Gbps): 0
- Native USB 2.0 (480Mbps): 1
- Native SATA Ports: 0
- PCI Express® Version: PCIe® 5.0
- Native PCIe® Lanes (Total/Usable): 28 / 24
Additional PCIe Lanes (from Motherboard):
- X670E: 12x Gen4
- X670: 12x Gen4
- B650E: 8x Gen4
- B650: 8x Gen4
NVMe Support:
- Boot, RAID 0 / RAID 1 / RAID 10
Operating System Support
- Windows 11 - 64-bit Edition
- Windows 10 - 64-bit Edition
- RHEL x86 64-bit
- Ubuntu x86 64-bit
Warranty:
- 36 Months Limited Warranty
What's in the Box?

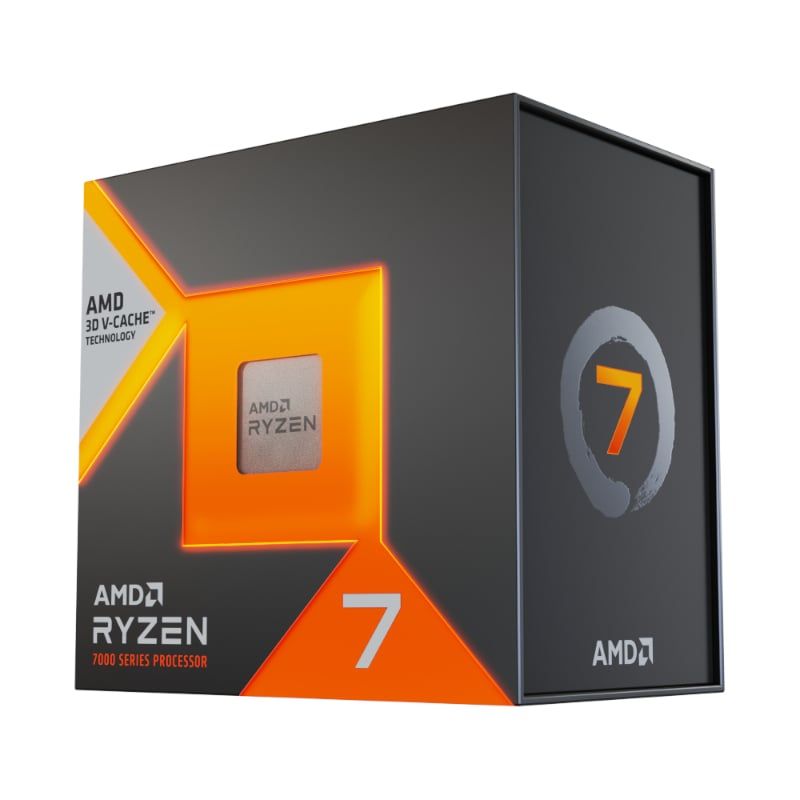

- 1x AMD Ryzen 7 7800X3D AM5 8-Core 4.2GHz Gaming Processor
