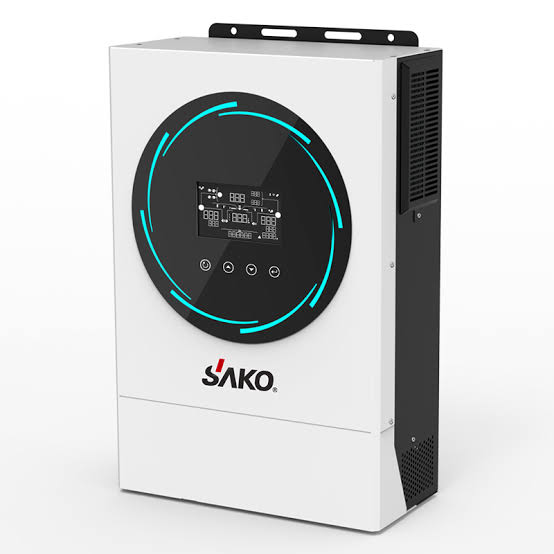

Sako Power6kW Sunpolo Hybrid Solar Inverter

Please Note

Requires installation by a SAKO preferred installer or a qualified electrician with a Wireman's license, who must supply a Certificate of Compliance after installation. Failure to provide the mentioned certificate of compliance and installation details may result in the voiding of your warranty

About

The SUNPOLO 6kW/48V Hybrid Solar Inverter is a versatile energy solution designed for both on-grid and off-grid applications. Combining a pure sine wave inverter, advanced 120A MPPT solar charge controller, battery charger, and smart energy management system into a single unit, it delivers reliable and efficient power for residential and light commercial installations. With support for grid feedback, battery-free daytime operation, parallel expansion, and optional WiFi monitoring, the SUNPOLO offers maximum flexibility while helping to optimize solar energy usage and reduce reliance on utility power.

Product Features

• 6kW pure sine wave hybrid solar inverter
• Built-in 120A MPPT solar charge controller
• Supports both on-grid and off-grid operation
• Grid feed-back capability for self-consumption systems
• Works with or without batteries during daylight hours
• Compatible with Lithium-ion (LiFePO4), AGM, Gel, Flooded, Tubular and Lead-Acid batteries
• Integrated Smart BMS communication support
• Optional parallel operation of up to 9 units
• Built-in WiFi monitoring (app required)
• USB On-The-Go (OTG) functionality
• Dual AC output with additional 12V DC output
• User-programmable RGB status lighting
• Touch-button LCD display
• Multiple communication interfaces including USB, RS232, RS485 and WiFi
• Wide PV input voltage range up to 500VDC
• High conversion efficiency of up to 96%

Product Specifications

General

• Rated Output Power: 6000W (6kW)
• Battery Voltage: 48VDC
• Inverter Type: Hybrid (On-Grid & Off-Grid)
• Waveform: Pure Sine Wave
• Maximum Efficiency: Up to 96%
• Parallel Capability: Up to 9 units

Solar Input (PV)

• Maximum PV Input Power: 6000W
• Maximum PV Input Voltage: 500VDC
• Nominal PV Voltage: 360VDC
• MPPT Voltage Range: 120–450VDC
• Start-Up Voltage: 120VDC
• Number of MPPT Trackers: 1
• Maximum PV Input Current: 27A

AC Input

• Input Voltage Range: 90–280VAC / 170–280VAC
• Maximum AC Input Current: 40A
• Auto Restart Voltage: 180VAC

AC Output

• Output Voltage: 220VAC / 230VAC / 240VAC
• Output Frequency: 50Hz / 60Hz
• Output Current: 26A
• Power Factor: 1.0
• Output Type: Single-Phase Dual AC Output

Battery Charging

• Built-In MPPT Solar Charge Controller: 120A
• Maximum Solar Charging Current: 120A
• Maximum AC Charging Current: 120A
• Maximum Total Charging Current: 120A
• Battery Compatibility:
  • Lithium (LiFePO₄)
  • AGM
  • Gel
  • Flooded Lead-Acid
  • Tubular Batteries

Communication & Monitoring

• USB Communication Port
• RS232 Communication Port
• RS485 Communication Port
• BMS Communication Support
• Optional WiFi Monitoring
• Touch-Control LCD Display

Environmental

• Operating Temperature: -10°C to 50°C
• Storage Temperature: -15°C to 60°C
• Humidity: 5%–95% RH (Non-Condensing)

Physical

• Dimensions: 456 × 303 × 148 mm
• Net Weight: 12 kg
• Gross Weight: 13.5 kg

Battery Not Included
