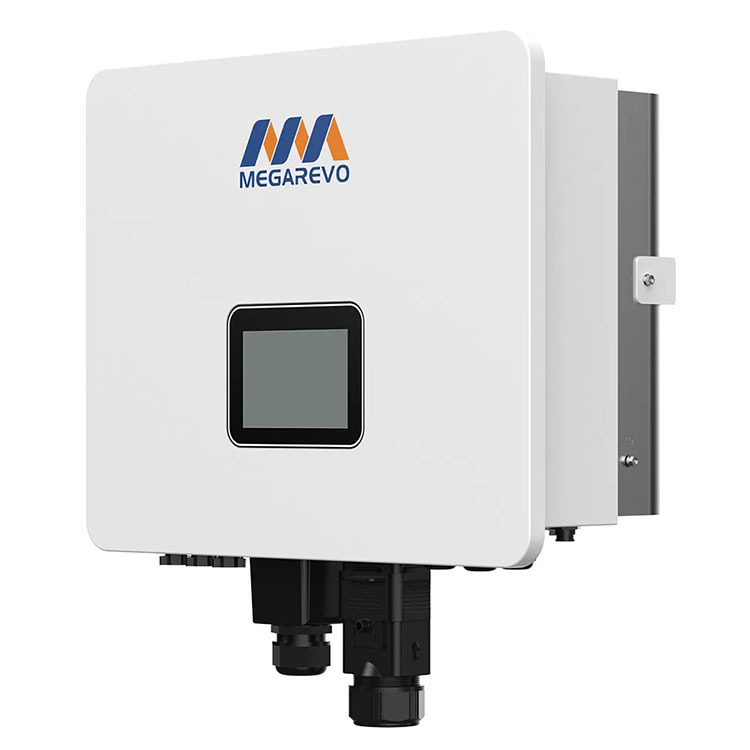

Megarevo5kW or 8kW G2 Hybrid Inverter

Please note

• Requires installation by a qualified electrician with a Wire Man's license, who must supply a Certificate of Compliance after installation. Failure to provide the mentioned certificate of compliance and installation details may result in the voiding of your warranty.

About

Take control of your home's energy with the Megarevo G2 Hybrid Inverter, available in 5kW and 8kW models to suit a wide range of residential and light commercial solar installations. Acting as the intelligent hub of your energy system, the G2 Hybrid Inverter seamlessly manages power between solar panels, 48V battery storage, the utility grid, backup loads, and an optional generator to maximise efficiency, reduce electricity costs, and ensure uninterrupted power.

Built with advanced dual MPPT technology, ultra-fast EPS backup switching, and compatibility with both lithium-ion and lead-acid batteries, the Megarevo G2 delivers outstanding solar performance from sunrise to sunset. Its ultra-quiet fanless design, IP65-rated weatherproof enclosure, built-in wireless connectivity (8kW model), and scalable parallel capability make it a future-ready solution for homes and businesses looking to achieve greater energy independence.

Product Features

• Available in 5kW and 8kW output options
• Intelligent hybrid inverter manages solar, battery, grid, backup loads, and generator
• Dual MPPT technology maximises solar energy production
• Optimised for modern high-current 210mm solar panels
• Low 100V PV start-up voltage captures more solar energy throughout the day
• Compatible with 48V lithium-ion and lead-acid battery systems
• CAN Bus and RS485 battery communication support
• Operates with or without a connected battery bank
• Integrated Emergency Power Supply (EPS) provides uninterrupted backup power
• Ultra-fast automatic switchover in under 10ms protects sensitive electronics
• Built-in generator input with automatic generator control
• Parallel operation allows future system expansion
• Fanless natural cooling for silent operation below 35dB
• IP65-rated weatherproof enclosure for indoor and outdoor installation
• Comprehensive electrical protection including overload, short circuit, overvoltage, reverse polarity, GFCI, and anti-islanding
• Zero-export functionality for grid compliance
• Built-in Wi-Fi and Bluetooth connectivity on the 8kW model
• Remote monitoring compatibility via cloud platforms (8kW model)
• Compact wall-mounted design

Product Specifications

General

• Product: Megarevo G2 Hybrid Inverter
• Available Models:
  • R5KL1-G2 – 5kW
  • R8KL1-G2 – 8kW
• Inverter Type: Single-Phase Hybrid Inverter
• Application: Residential & Light Commercial Energy Storage
• Installation: Wall Mounted
• Cooling System: Fanless Natural Convection
• Noise Level: <35dB
• Protection Rating: IP65

Output Power

• 5kW Model
  • Rated Output Power: 5kW
• 8kW Model
  • Rated Output Power: 8kW

Solar Input

• Dual MPPT (2 Independent MPPT Trackers)
• Optimised for High-Current 210mm PV Modules
• Maximum Short-Circuit Current: 18.5A per MPPT
• Low PV Start-Up Voltage: 100V
• Supports Split Roof & Multi-Orientation Solar Arrays
• Improved Low-Light Energy Harvesting

Battery Compatibility

• Battery Voltage: 48V
• Compatible Battery Types:
  • Lithium-Ion
  • Lead-Acid
• Battery Communication:
  • CAN Bus
  • RS485
• Supports Operation With or Without Battery Connected

Backup Power (EPS)

• Integrated Emergency Power Supply (EPS)
• Automatic Backup Switchover
• Transfer Time: <10ms
• Suitable for Sensitive Electronics
• Continuous Backup Power During Grid Failure

Grid & Generator Support

• Hybrid Solar/Grid Operation
• Intelligent Energy Dispatch
• Generator Integration
• Automatic Generator Control
• Utility Grid Compatible
• Zero Export (Anti-Feed-In) Function

Expansion

• Parallel Operation Supported
• Multiple Units Can Be Connected
• Easily Scalable for Growing Energy Requirements

Connectivity & Monitoring

• 5kW Model
  • CAN Bus & RS485 Battery Communication
• 8kW Model
  • Built-in Wi-Fi
  • Built-in Bluetooth
  • Smartphone Configuration
  • Wireless Firmware Updates
  • Remote Monitoring Support
  • Compatible with Solarman Cloud Platform
  • Optional Wi-Fi or 4G Monitoring Dongles

Safety Features

• Overvoltage Protection
• Overcurrent Protection
• Short Circuit Protection
• Battery Reverse Polarity Protection
• Ground Fault Circuit Interrupter (GFCI)
• Insulation Monitoring
• Anti-Islanding Protection
• Zero Export Control
• Comprehensive Electrical Protection System

Environmental

• Operating Temperature: -25°C to +60°C
• Fanless Passive Cooling
• Indoor & Outdoor Installation
• IP65 Weatherproof Enclosure
• Dustproof and Water Resistant

Design

• Compact Wall-Mounted Design
• Heavy-Duty Industrial Construction
• Ultra-Quiet Fanless Operation
• Space-Saving Installation
• Built for Long-Term Residential and Light Commercial Solar Systems
• Warranty: 6 months

What's in the Box?

• 1x 5kW or 8kW G2 Hybrid Inverter
