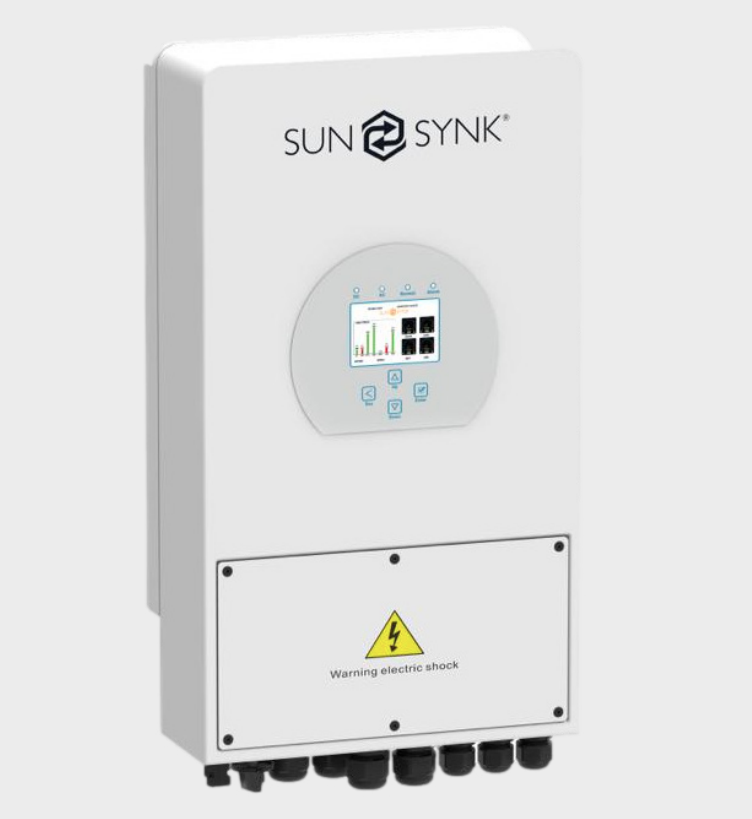

Sun Synk5kW Hybrid Parity Inverter 48V with Wi-Fi Dongle

About

Load shedding does not stand a chance when you have the Sunsynk 5kW Hybrid Inverter on your wall. This clever 48V powerhouse pulls energy from wherever it makes sense, whether that is your solar panels, the mains grid, a battery bank, or a generator, and seamlessly switches between them to keep your home or business running without a hiccup. It delivers a solid 5,000W of output, plays nicely with both lithium-ion and lead-acid batteries, and even lets you keep an eye on everything in real time through the mobile app and included Wi-Fi dongle. With dual MPPT trackers, zero export capability, and the option to parallel up to 16 units as your needs grow, it is built to handle today's energy demands and scale with tomorrow's. Reliable, smart, and ready for South African conditions, this is the backbone your solar setup has been waiting for.

Product Features

• Compatible with a wide range of batteries: Works with both lithium-ion and lead-acid batteries across a 40V to 60V range, giving you the freedom to build the storage setup that suits your budget and needs.
• Dual MPPT design: Two Maximum Power Point Trackers allow flexible solar array configurations and squeeze maximum efficiency out of your panels.
• Real-time Wi-Fi monitoring: The included Wi-Fi dongle and user-friendly mobile app let you track and control your system from anywhere, so you always know exactly what your power is doing.
• Automatic grid-to-off-grid switching: Seamlessly moves between grid-tied and off-grid modes, keeping your essential loads powered without any manual intervention.
• Scalable parallel operation: Connect up to 16 units in a single installation, making it easy to expand your system as your energy demands grow.
• Essential and non-essential load outputs: Prioritise the circuits that matter most during an outage while managing the rest intelligently.
• Zero export capability: Prevents excess power from feeding back into the grid, giving you greater control over your energy usage.
• Rugged IP65-rated build: Designed to withstand a range of environmental conditions for dependable, long-term performance.

Product Specifications

• Rated Power: 5,000W
• Max AC Output Power: 5,500W
• Battery Voltage: 48V (40V to 60V)
• Max PV Input Power: 6,500W
• MPPT Voltage Range: 150V to 425V
• Number of MPPTs: 2
• Strings per MPPT: 1+1
• Peak Output Power: 10,000W (10 seconds)
• Max Charging Current: 120A
• Max Discharging Current: 120A
• Efficiency: Up to 97.5%
• Output Frequency: 50/60Hz
• Output Voltage: 220/230Va.c (single phase)
• Enclosure Rating: IP65
• Operating Temperature: -45°C to 60°C (derating above 45°C)
• Cooling: Natural cooling •
• BMS Communication: RS485 and CAN
• Dimensions: 460 x 330 x 155mm
• Weight: 15kg
• Warranty: 2 years

What's in the Box?

• 1 x Sunsynk 5kW Hybrid Inverter
• 1 x Wi-Fi Dongle
• 1 x CT Clamp
