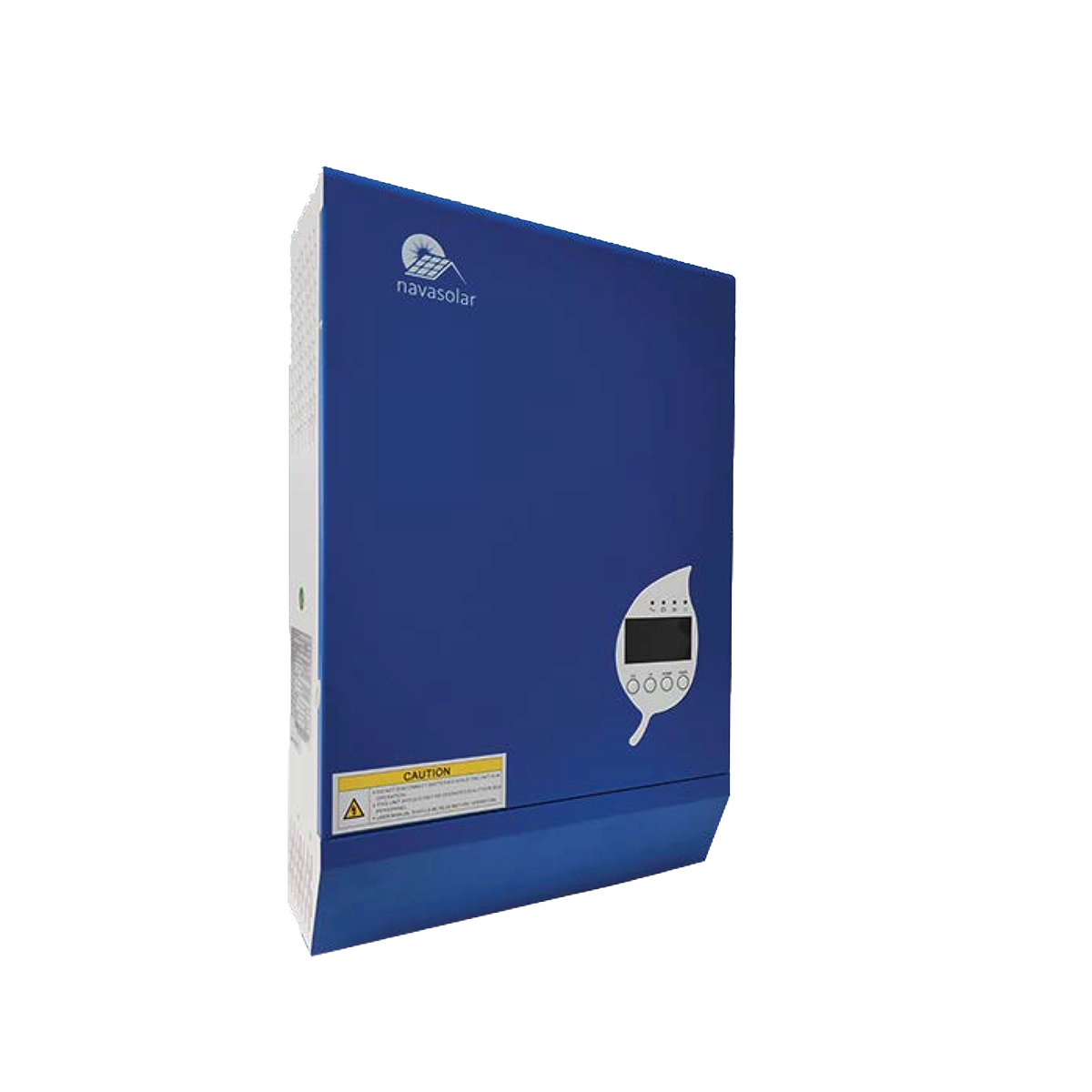

Navasolar5KW 48V Off-Grid Solar Inverter 80A MPPT (Model: X5048)

Please Note

Requires installation by a qualified electrician with a Wire Man's license, who must supply a Certificate of Compliance after installation. Failure to provide the mentioned certificate of compliance and installation details may result in the voiding of your warranty.

About

The 5KW 48V Off-Grid Solar Inverter (X5048) is a powerful solar energy solution designed to convert solar power into reliable electricity for homes, cabins, and off-grid applications. Featuring an 80A MPPT solar charge controller, it efficiently maximises solar energy capture while providing stable power output for connected appliances and systems.

Product Features

Inverter Output

• Nominal Battery System Voltage: 48VDC
• Parallel Capability: Yes, up to 9 units
• Operation Without Battery: Yes
• Rated Power: 5000W
• Surge Power: 10000W
• Wave form: Pure Sine Wave
• AC Voltage Regulation(Batt.Mode): (220VAC~240VAC) 5%
• lnverter Efficiency(Peak): 94%
• Transfer Time: 10ms(typical)

AC Input

• Voltage: 208/220/230/240VAC
• Selectable Voltage Range: 170~280Vac(for personal Computer), 90~280Vac (for home appliances)
• Frequency Range: 50Hz/60Hz(Auto sensing)

Battery

• Normal Voltage: 48VDC
• Floating Charge Voltage: 54.8VDC
• Overcharge Protection: 60VDC

Solar Charger and AC Charger

• Maximum PV Array Open Circuit Voltage: 450VDC
• PV Array Voltage Range: MPPT 120~430VDC
• Standby Power Consumption: 2W
• Maximum PV Input Power: 5500W
• Maximum Solar Charge Current: 80A
• Maximum Efficiency: 98%
• Maximum AC Charge Current: 80A
• Maximum Charge Current: 80A

Communication

• USB/RS232/RS485(optional)

Mechanical Specifications

• Machine Dimensions: (HxWxD)(mm) 470x310x120
• Package Dimensions(: HxWxD)(mm) 575x400x200
• Net Weight(kg): 8.45
• Operating Temperature: 0 ~40
• Humidity: 5% to 95% Related Humidity (Non-condensing)
• Storage Temperature: -15 ~60
• Gross Weight: 9.8kg
• Warranty: 24 months

What's in the box?

• 1x 5KW 48V Off-Grid Solar Inverter 80A MPPT (Model: X5048)
