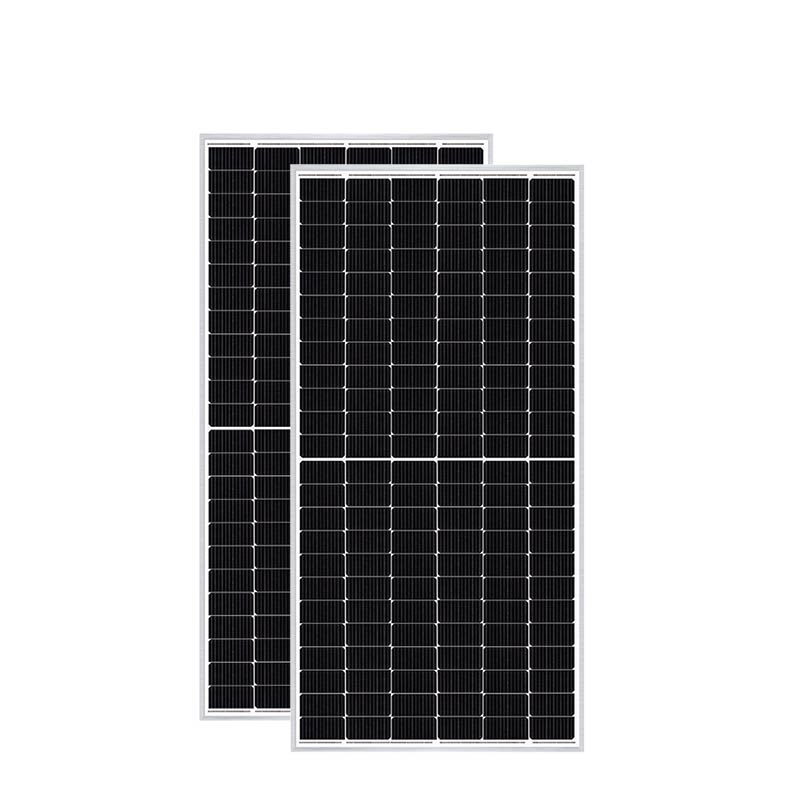

Sako Power550W 144-Cell Mono PERC Half-Cell PV Panel

Please Note

Requires installation by a SAKO preferred installer or a qualified electrician with a Wireman's license, who must supply a Certificate of Compliance after installation. Failure to provide the mentioned certificate of compliance and installation details may result in the voiding of your warranty

About

Generate solar power efficiently with the SAKO 550W Mono PERC Half-Cell PV Panel. Its 144-cell design delivers a module efficiency of 21.30%, making it suitable for residential, commercial and larger solar installations.

The half-cell layout helps reduce connection losses and the effects of partial shading, while its durable glass and aluminium construction is designed to withstand demanding outdoor conditions.

Product Features

• 550W power output: Delivers a rated maximum output of 550 W under standard test conditions.
• High module efficiency: Achieves up to 21.30% efficiency to maximise power generation from the available installation space.
• Half-cell design: Helps reduce internal power losses and limits the effect of partial shading.
• Mono PERC cells: Uses 144 monocrystalline PERC cells for efficient solar energy conversion.
• Weak-light performance: Designed to produce power in lower-light conditions, including cloudy weather, mornings and evenings.
• Anti-PID performance: Helps resist potential-induced degradation for more reliable long-term operation.
• Lower operating temperature: Designed with favourable operating and temperature characteristics to support consistent power output.
• Durable construction: Features tempered glass and an anodised aluminium frame for demanding outdoor environments.
• High load resistance: Withstands front loads of up to 5,400 Pa and rear loads of up to 2,400 Pa.
• Hail impact resistance: Tested to withstand a 25 mm hailstone travelling at 23 m/s.
• Linear performance warranty: Supported by a 25-year linear output guarantee.

Product Specifications

• Model: SK-550P8-144M
• Product type: Monocrystalline half-cell PV panel
• Cell type: Mono PERC
• Number of cells: 144
• Cell dimensions: 182 x 182 mm
• Maximum power output: 550 W
• Power output tolerance: +3%
• Module efficiency: 21.30%
• Voltage at maximum power: 41.57 V
• Current at maximum power: 13.23 A
• Open-circuit voltage: 49.62 V
• Short-circuit current: 14.03 A
• NMOT power output: 409 W
• NMOT voltage at maximum power: 39 V
• NMOT current at maximum power: 10.48 A
• NMOT open-circuit voltage: 46.7 V
• NMOT short-circuit current: 11.29 A
• Nominal operating cell temperature: 45°C ±2°C
• Maximum system voltage: 1,500 V DC
• Maximum series fuse rating: 20 A
• Operating temperature range: -40°C to 85°C
• Temperature coefficient of Pmax: -0.35%/°C
• Temperature coefficient of Voc: -0.27%/°C
• Temperature coefficient of Isc: 0.05%/°C
• Maximum front static load: 5,400 Pa
• Maximum rear static load: 2,400 Pa
• Maximum hailstone impact: 25 mm at 23 m/s
• Front cover: 3.2 mm low-iron tempered glass
• Frame: Silver anodised aluminium alloy
• Junction box protection: ≥IP65
• Cable: 300 mm, 4 mm²
• Dimensions: 2,279 x 1,134 x 35 mm
• Weight: 28.5 kg
• Output guarantee: 25 years
• Quality assurance: 10 years
• Limited materials and workmanship warranty: 5 years

What's in the Box?

• 1x SAKO 550W Mono Half-Cell PV Panel
