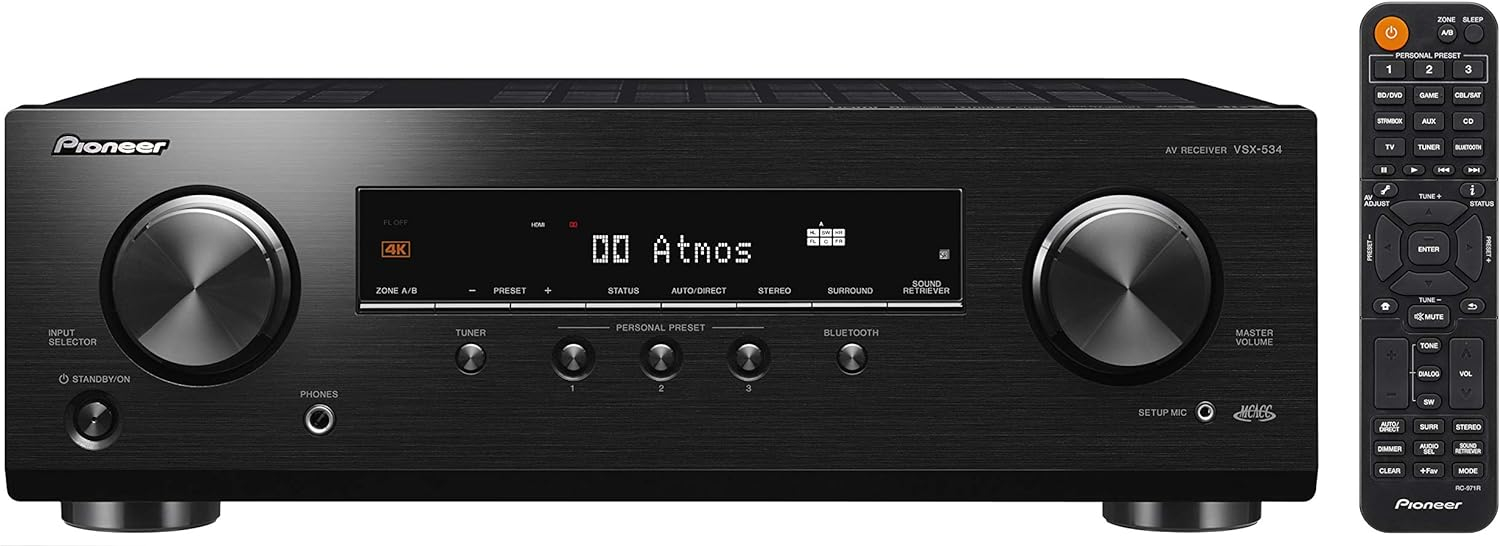

Pioneer4K AV Receiver DAB (Model: VSX-534D)

About

The VSX-534 AV Receiver features Dolby Atmos immersive sound at a price you will not find anywhere else. The VSX-534 comes in a user-friendly new design, with a 12% slimmer size than the previous model for easy installation, 4K indicator, and Personal Preset and Bluetooth® Input buttons on the front panel. Immerse in enveloping sound with Dolby Atmos® and DTS: X® audio formats. Or even without height or surround speakers, you can still enjoy virtual 3D surround effects with Dolby Atmos Height Virtualizer* and DTS Virtual: X. The AV receiver is compatible with Ultra HD, HDR10, HLG, and Dolby Vision™ with support for HDCP 2.2, so you can fully appreciate premium content such as 4K videos.

Product Features

DTS:X

• Can automatically adapt the audio to the existing channels and speaker system, no specific speaker layout is required.

Dolby Atmos

• You can reproduce object-oriented sound in smooth, curving movements, or the realistic three-dimensional movement overhead by the top speakers.

Dolby Atmos Height Virtualization

• Creating a virtual surround and height effect from traditional speaker layouts without employing additional surround or height speakers.

Next Generation Video Standard Ready

• The VSX-534 supports pass-through for HDR10, HLG (Hybrid Log-Gamma), and Dolby Vision signals. By connecting a compatible source device, you can enjoy these latest video standards on a compatible display. What’s more, all HDMI terminals support 4K (60p/4:4:4/24-bit), Wide Colour Gamut(BT.2020), and HDCP 2.3, so you will have no problem when upgrading to new devices, and can also enjoy premium content such as 4K videos with digital copy protection.

MCACC Auto Room Tuning

• Create the optimum acoustic environment with Pioneer’s MCACC (Multi-Channel Acoustic Calibration System), developed with the expertise of professional recording studios. With the custom microphone, the system automatically compensates for differences in speaker size, level and distance, and equalises response.

Zone B Output for Wireless Headphones

• The VSX-534 is equipped with Zone B audio output terminals for expanding the Main Zone sound by connecting your wireless headphone dock. You can listen to the sound playing in the living room via wireless headphones.

Built-in Bluetooth® Wireless Technology

• Stream songs from compatible devices with the built-in Bluetooth® Wireless Technology (ver. 4.2 + LE). The VSX-534 features A2DP/AVRCP profiles, with support for SBC/AAC codecs. By pressing the Bluetooth button on the front panel, you can directly start up the BT function, even when the unit is in standby.

Personal Preset

• Just press the Personal Preset button on the front panel for three seconds, and your current settings such as volume level and listening mode can be saved. Up to three presets can be registered and easily called up from the front panel button or the remote control.

Dialog Enhancement

• With this unique mid-range sound control feature, you can make independent volume adjustments to the range including dialogues in films, with the up/down key on the remote control.

On-Screen Information for Audio/Video Status

• The screen display now shows detailed input and output information for the playing content. So you can see whether your video is being output by Dolby Vision, or if the movie is processing Dolby Atmos or DTS:X sound.

Product specifications

Amplifier

• Design: Direct Energy
• Channels: 5.2
• Power Output (20Hz-20kHz, 0.08% THD @ 8 ohms, 2 channels driven): 80 W/ch (56 W/ch)
• Power Output (1 kHz, 10% THD @ 6 ohms, 1 channel driven): 150 W/ch (105 W/ch)
• Estimated Power Consumption: 445 W (0.445 kW)
• Network Standby Power Consumption: 0.1 W (0.0001 kW)

Processing

• Digital Core DSP Engine: Digital Quad-Core 32-bit DSP (Cirrus Logic)
• Music File Playback: Up to 192 kHz/24-bit ALAC, AIFF, FLAC, WAV via USB
• Audio Decoders: Dolby Atmos, Dolby TrueHD, DTS:X, DTS Neural:X
• HDMI SACD Transfer: 2 Channel
• Audio DACs: 384 kHz/32-bit D/A Conversion with AK4438 (AKM)

Audio Features

• Dolby Atmos Height Virtualizer (available with future firmware update)
• Dolby Digital Plus
• DTS-HD Master Audio
• DTS Virtual:X
• Dialog Enhancement
• Sound Retriever AIR
• Multi-band Tone Control
• Speaker A/B
• Advanced Sound Retriever
• Digital Noise Reduction
• Sound Delay (Lip Sync)
• Bi-Amp Capability

Soundfield Calibration

• MCACC Memory
• 9-band EQ
• Polarity Check
• Standing Wave Control
• Symmetric EQ
• Distance Adjustment (0.1 feet increments) (3 cm increments)
• Auto Subwoofer Crossover

Video Processing

• 4K Ultra HD Pass-Through (HDR10, HLG, BT.2020 Wide Colour Gamut)
• 3D Ready
• HDMI Standby Through with Input Switch / Last Memory
• HDMI 36-bit Deep Color
• Video Processor
• Component Video Scaler
• Pure Cinema I/P Converter
• 3D Noise Reduction
• 4K Ultra HD Video Scaler (Ultra HD Upscaling)
• Audio Return Channel
• Dolby Vision Compatible
• HDMI x.v.Colour
• Video Converter to HDMI
• Composite Video Scaler
• Advanced Video Adjustment
• Super Resolution

Connectivity

• HDMI Inputs: 4 (Rear)
• HDMI Output: 1
• Wi-Fi Built-In
• Wireless Adapter Port
• Component Video Input/Output
• iPhone/iPod/USB Memory Input
• Ethernet Input
• Digital Audio Inputs (Optical & Coaxial): 2
• Headphone Output
• AM/FM Tuner Presets: 40
• MHL 2 Support
• Bluetooth Built-In (version 4.2 + LE, profiles: A2DP 1.2/AVRCP 1.3, codecs: SBC/AAC)
• Bluetooth Adapter Port
• Composite A/V Input/Output
• USB Terminal (Rear)
• Analog Audio Inputs: 2
• Pre-Amp Output: 0.2 ch
• Front A/V Inputs: USB / 3.5mm stereo mini jack
• Installation
• User-Friendly GUI with System Setup Menu
• Multi-room and Source Output
• Multi-Zone On-Screen Display
• Function Rename
• Sleep Timer
• Auto Power Down
• IR Serial Remote In/Out
• FL Dimmer
• Remote Control

Speaker Configuration

• Versatile: Front, Center, Surround/Height

Dimensions (W x H x D in mm)

• With Wi-Fi Antenna Up: 447
• Without Wi-Fi Antenna Up: 435 x 150 x 318

Weight

• 8 kg (17.6 lbs)

Warranty

• 6-month warranty

What is in the box?

• 2 x Floorstanding loudspeakers (S 807)
• 1 x Rear bookshelf loudspeakers (S 801)
• 1 x Center-channel loudspeaker (S 81 CEN)1 x Jamo S 807 owner's manual
• 2 x Floorstanding loudspeakers
• 2 x Grilles
• 8 x Mounting feet
• 16 x Screws
• 1 x User Manual
• 1 x Important Safety Instructions
• 1 x Warranty Information
