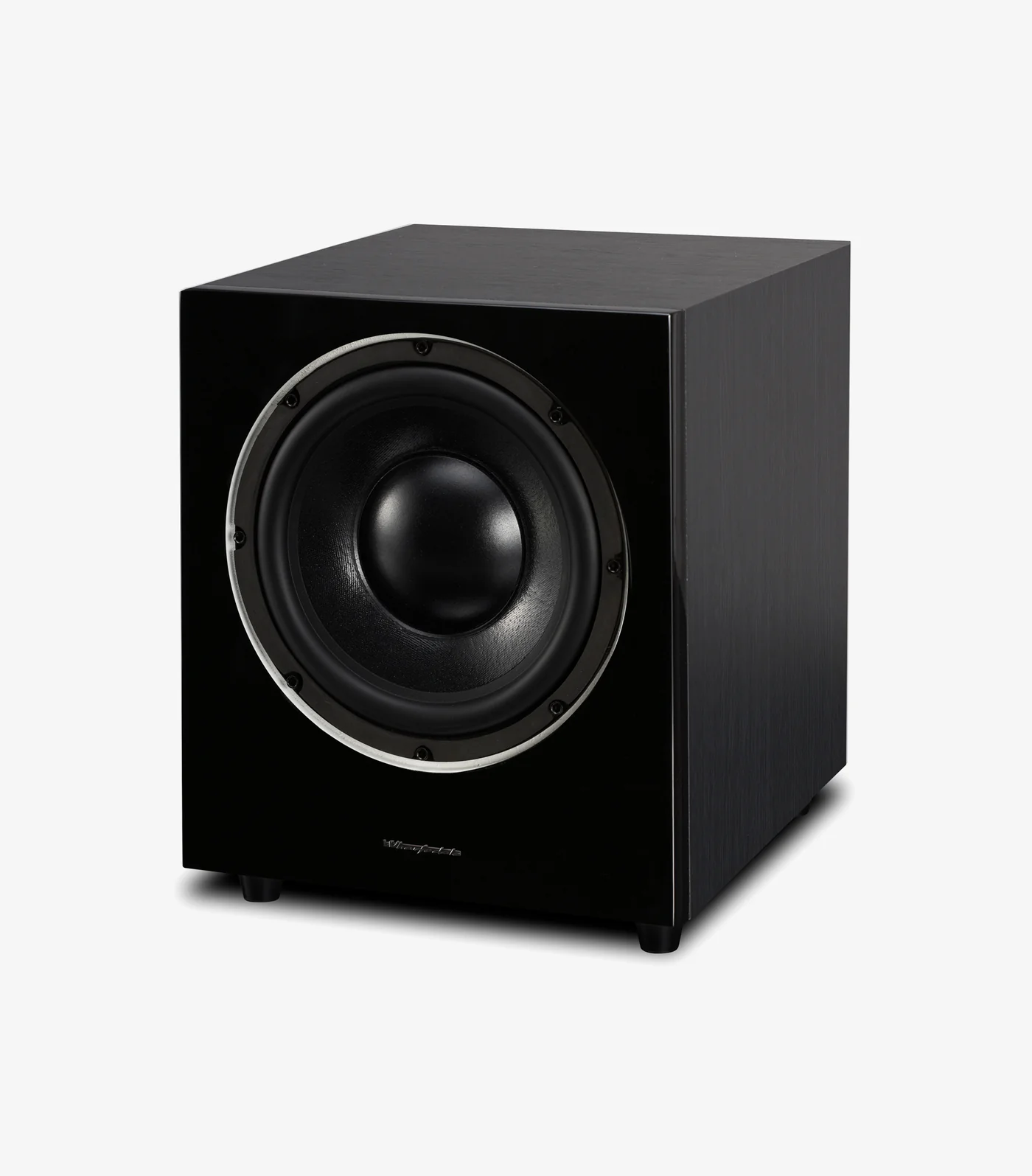

Wharfedale150W Active Subwoofer (Model: WH-D10)

About

Feel the bass, don't just hear it! The Wharfedale WH-D10 Active Subwoofer is designed to bring powerful, deep and controlled low frequencies to your music and home cinema setup. Its 10-inch long-throw driver works with a custom-designed 150W Class-D amplifier and sealed-box construction to deliver fast, accurate and punchy bass. With dedicated LFE and stereo inputs, adjustable crossover control, phase inversion and automatic power sensing, the WH-D10 gives you plenty of flexibility to fine-tune your system and bring your favourite movies, music and games to life.

Product Features

• Powerful 10-Inch Driver: The long-throw driver delivers deep, impactful bass that adds weight and excitement to your entertainment.
• 150W Class-D Amplifier: Provides powerful, efficient amplification for dynamic low-frequency performance.
• Sealed-Box Design: Helps produce fast, tight and accurate bass response.
• Dedicated LFE Input: Easily integrates into home cinema systems through a dedicated low-frequency effects connection.
• Stereo Line Inputs: Connects to stereo amplifiers and other audio equipment via RCA inputs.
• Adjustable Crossover: Lets you fine-tune the subwoofer's crossover point to better match your main speakers.
• Phase Inversion: Provides additional control when optimising the subwoofer's integration with your room and speaker setup.
• Auto On/Off: Automatically switches on when a signal is detected and enters standby when not in use.
• High-Pass Output: Allows the subwoofer to be incorporated into more advanced system configurations.
• High Output Capability: Delivers up to 110dB average maximum output at 1m for room-filling bass.
• Compact Design: Provides substantial low-end performance without demanding excessive floor space.
• Ideal for Music & Home Cinema: Adds depth and impact to everything from movie soundtracks to bass-heavy music.

Product Specifications

• Brand: Wharfedale
• Model: WH-D10
• Type: Active Dynamic-Drive IB subwoofer system
• Enclosure Type: Sealed box
• Drive Unit: 1 x 10" (250mm) cone long-throw
• Amplifier Power Output: 150W
• Peak Power Output: 300W
• Frequency Response: 35Hz–150Hz ±3dB
• Crossover Range: 30Hz–150Hz
• Line Input Sensitivity: 100mV for maximum output
• Inputs: Stereo Line In (2 x RCA Phono), Mono LFE Line In (RCA Phono)
• Input Impedance: Line In 10kΩ, LFE 5kΩ
• Signal-to-Noise Ratio: >85dB
• Average Maximum Output: 110dB @ 1m
• Features: Low-pass filter slope adjustment, phase inversion, auto on/off, high-pass output
• Dimensions: 363 x 333 x 372 mm
• Net Weight: 14kg
• Gross Weight: 16.5kg
• Colour: Black

What's in the Box?

• 1x Wharfedale WH-D10 Active Subwoofer
• 1x IEC Power Cord
• Spikes
