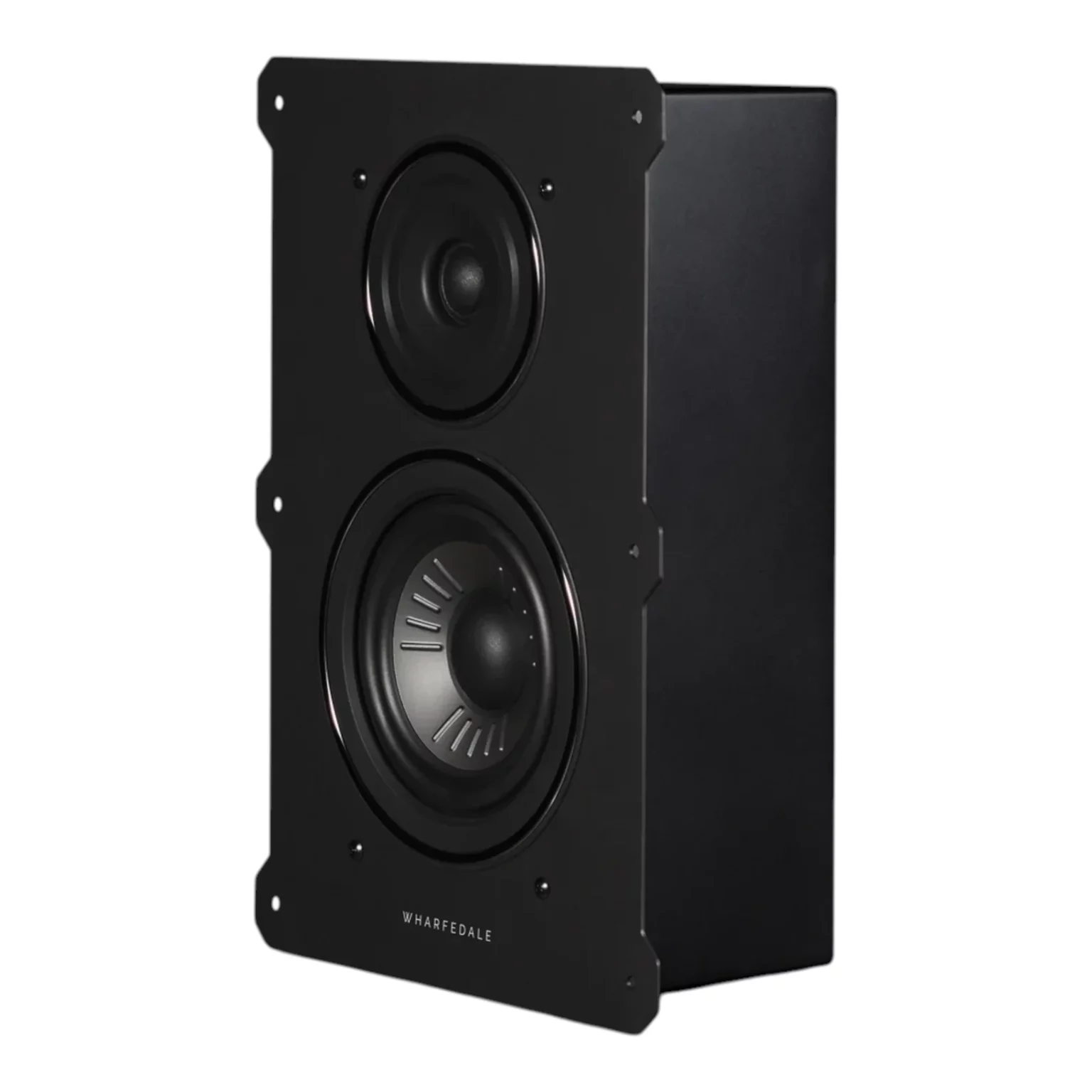

Wharfedale100W 2-Way Diamond In-Wall Mounted Loudspeaker (Model: IW-1)

About

Bring immersive sound into your home without taking up valuable floor or shelf space. The Wharfedale Diamond IW-1 is a 2-way in-wall loudspeaker designed to blend neatly into home-theatre and entertainment setups while delivering detailed, room-filling audio. Its 6.5" advanced polypropylene cone woofer and 1" textile dome tweeter work together for balanced sound across the frequency range.

Product Features

• Discreet In-Wall Design: Integrates neatly into your entertainment space for a clean, built-in appearance.
• 2-Way Speaker System: Combines a dedicated bass driver with a textile dome tweeter for balanced audio reproduction.
• 6.5" Advanced PP Cone: Delivers controlled and detailed low-frequency performance.
• 1" Textile Dome Tweeter: Helps produce smooth, detailed high frequencies.
• Closed-Box Construction: Designed for consistent performance within an in-wall installation.
• Home Theatre Ready: Ideal for creating a more immersive entertainment setup.
• Powerful Yet Efficient: Supports amplifier power from 20–100W.
• 4Ω Compatible: Suitable for a range of compatible home-theatre amplifiers and receivers.
• Compact Installation Profile: Designed to sit neatly within the wall while maintaining a substantial 4.86L cabinet volume.

Product Specifications

• Brand: Wharfedale
• Model: Diamond IW-1
• Type: 2-way in-wall loudspeaker
• Enclosure: Closed-box
• Bass Driver: 6.5" (150mm) advanced PP cone
• Tweeter: 1" (25mm) textile dome
• Sensitivity: 86dB (2.83V @ 1m)
• Recommended Amplifier Power: 20–100W
• Peak Power Handling: 100W
• Peak SPL: 96dB
• Nominal Impedance: 4Ω compatible
• Minimum Impedance: 3.9Ω
• Frequency Response: 80Hz–20kHz ±3dB
• Bass Extension: 75Hz (-6dB)
• Crossover Frequency: 2.6kHz
• Cabinet Volume: 4.86L
• Dimensions: 360 × 200 × 141mm (H × W × D, with grille + bracket)
• Net Weight: 5.5kg per speaker
• AV Shield: No

What's in the Box?

• 1x Wharfedale Diamond IW-1 In-Wall Speaker
• 1x User Manual
• 1x Certificate
