H3C10 or 28 Port Gigabit Switch

About

Three switches, one deal, and the choice is yours. Whether you're tidying up a home office, wiring a shop with IP cameras, or upgrading a growing business network that's outgrown its cheap unmanaged box, there's an H3C here with your name on it. Go compact with the fanless 10-port S1850-10P for silent, low-power Gigabit switching with fibre uplinks. Step up to the 28-port S1850-28P-PWR to power up to 24 cameras, access points or IP phones straight over their network cables with a 190W PoE+ budget. Or take the serious option, the S5120V2-28P-PWR-LI, a second-generation managed access switch with IRF2 stacking, OSPF and RIP routing, ring redundancy and a full enterprise security stack. All three give you real Gigabit speed, SFP fibre slots, VLANs, QoS and proper management instead of guesswork. Pick the one that fits your setup and finally stop blaming the switch.

Product Features

• Full Gigabit performance across all three: Every port runs 10/100/1000 autosensing with auto MDI/MDI-X, so your file transfers, backups and streaming stop crawling.
• SFP fibre uplinks on every model: Run fibre between floors, buildings or racks and leave copper's 100m limit behind.
• PoE+ on the two 28-port models: IEEE 802.3at delivers power and data down one cable to cameras, access points and IP phones, saving you a fortune in electrical work.
• Proper management, not guesswork: VLANs, link aggregation, QoS traffic prioritisation, port mirroring and remote monitoring on all three, via a simple web GUI on the S1850 models or full CLI, SSH, SNMP and IMC on the S5120V2.
• Layer 3 routing built in: The S1850 models handle static IPv4 and IPv6 routing, while the S5120V2 adds RIP, RIPng and OSPF for more complex networks.
• Serious security: ACLs, IEEE 802.1X and RADIUS logins, port isolation, port security and ARP attack protection keep unauthorised devices off your network.
• Resilience where it counts: STP, RSTP and MSTP across the range, with Smart Link, RRPP and IRF2 stacking on the S5120V2 for networks that can't afford downtime.
• Rack or desktop friendly: All three mount in a standard 1U rack space or sit on a shelf, and the S1850-10P is fanless and completely silent.

Product Specifications

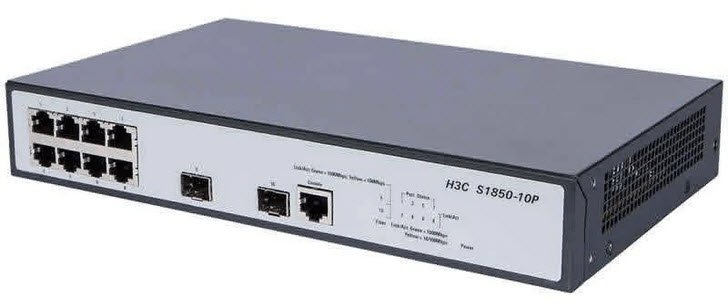

Option 1: H3C S1850-10P (SMB-S1850-10P-GL)

• Ports: 8 x 10/100/1000Base-T, 2 x 100/1000BASE-X SFP
• Switching Capacity: 20 Gbps
• Packet Forwarding Rate: 15 Mpps
• MAC Address Table: 8K
• PoE: Not supported
• Cooling: Fanless
• Power Consumption: Up to 9W
• Input Voltage: 100V to 240V AC, 50/60Hz
• Operating Temperature: 0°C to 40°C
• Dimensions (H x W x D): 44 x 266 x 162mm
• Weight: 0.9kg

Option 2: H3C S1850-28P-PWR (SMB-S1850-28P-PWR-GL)

• Ports: 24 x 10/100/1000Base-T PoE+, 4 x 100/1000BASE-X SFP
• PoE: IEEE 802.3at, 190W total budget, up to 30W per port
• Switching Capacity: 56 Gbps
• Packet Forwarding Rate: 42 Mpps
• MAC Address Table: 16K
• Cooling: 2 x Fans
• Power Consumption: Up to 235W
• Input Voltage: 100V to 240V AC, 50/60Hz
• Operating Temperature: 0°C to 40°C
• Dimensions (H x W x D): 44 x 440 x 238mm
• Weight: 3.4kg

Option 3: H3C S5120V2-28P-PWR-LI (LS-5120V2-28P-PWR-LI-GL)

• Ports: 24 x 10/100/1000BASE-T PoE+, 4 x 1000BASE-X SFP
• PoE: IEEE 802.3af and 802.3at, 185W AC budget
• Switching Capacity: 56 Gbps
• Packet Forwarding Rate: 41.7 Mpps
• Stacking: IRF2
• Routing: IPv4 and IPv6 static, RIP, RIPng, OSPF
• Power Consumption: 19W minimum, up to 240W maximum
• Input Voltage: 100V to 240V AC, 50/60Hz
• Operating Temperature: 0°C to 45°C
• Dimensions (H x W x D): 43.6 x 440 x 260mm
• Weight: Up to 4kg

Shared across all three

• VLAN Support: IEEE 802.1Q
• Jumbo Frame Support: Supported
• Console Port: 1
• Operating Humidity: 10% to 90% RH non-condensing (S1850 models), 10% to 95% RH non-condensing (S5120V2)
• Mounting: 1U rack or desktop
