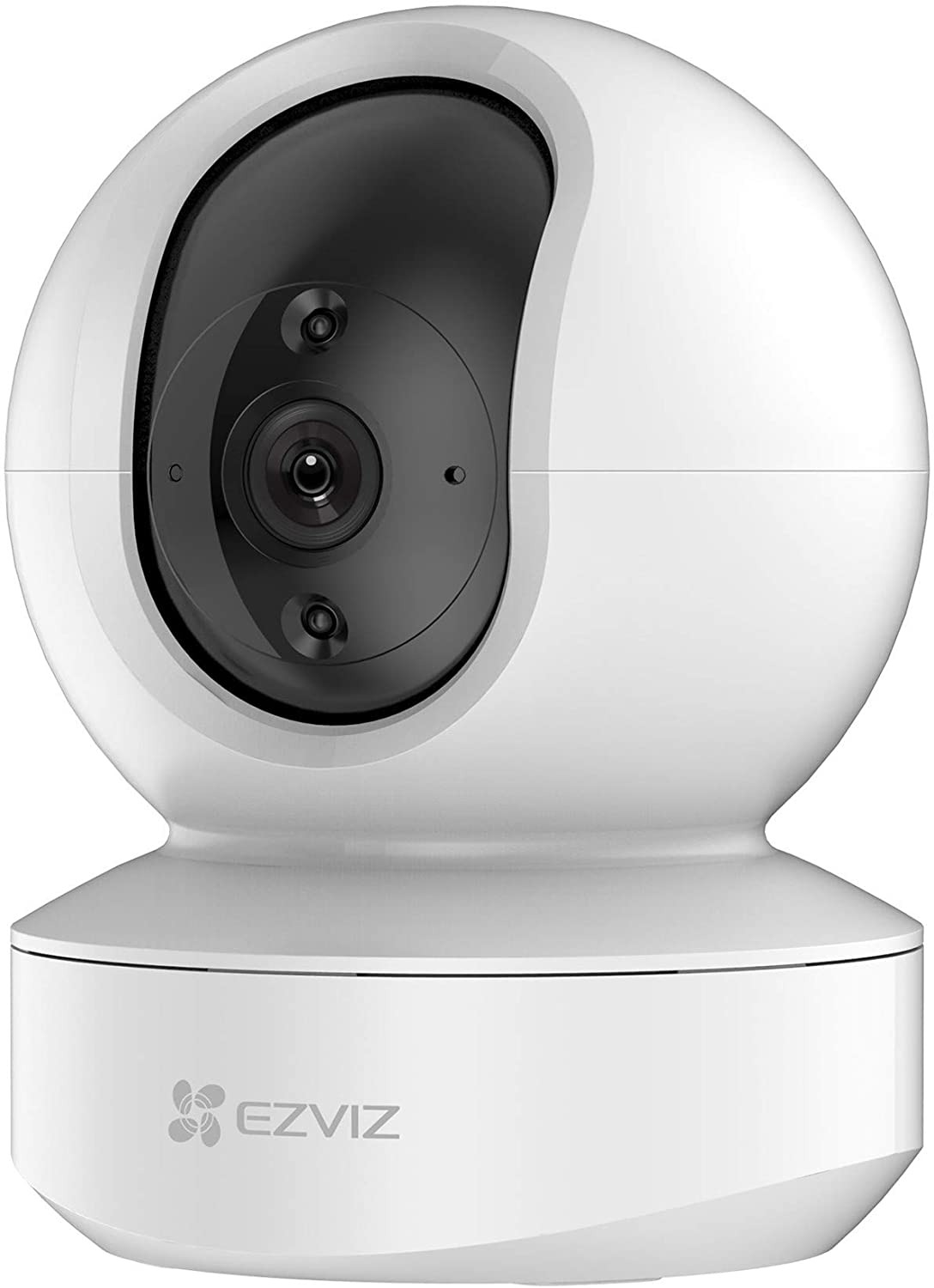

Ezviz1080p Smart Motion Wi-Fi Pan & Tilt Camera (Model: CS-TY1-B0-1G2WF)

About

Smart Wi-Fi Pan & Tilt Camera

Watch over your entire space easily with the TY1 Camera’s 360-degree field-of-view and its smart tracking feature. It’s got you covered – all day & all night.

Zero blind spots.

Keep tabs on every corner with just one TY1. Its expansive 360-degree field-of-view ensures full coverage, so you don’t miss a thing.

Smart tracking

When the camera detects a moving object, it is smart enough to automatically track the motion while alerting you with an image in real time.

Communication, anytime

Talk to your loved ones and deter unwelcome strangers – all by using the TY1’s two-way communication feature. Using the EZVIZ App on your mobile device, you can easily and conveniently enjoy communication wherever you might be.

See further in the dark

Enjoy round-the-clock protection with the TY1 camera. Using powerful Infrared LED lights, it lets you see up to 10 meters (33 feet) in dim light.

We protect your data and privacy

Protecting your data and privacy is our highest priority. Data transmission between the camera and the EZVIZ Cloud is encrypted from end to end. Only you have the keys to decrypt your data. To get an extra layer of privacy protection, you can always enable the camera’s sleep mode on the EZVIZ App.

Two storage options

With two storage options, you can choose where to save your recordings. The camera can even save to two locations at the same time for added backup in case the camera is damaged, or your network crashes.

Security at Your Fingertips

With the EZVIZ App, you can capture, save, protect, and share what’s valuable to you.

Product Features

• Pre-Emptive Defense
• Two-Way Audio
• Dual-Antenna Wi-Fi
• 30m Infrared Night Vision
• Compatible with Alexa via Echo Show and Echo Spot
• Two antennas provide a reliable Wi-Fi connection
• Integrated strobe light and a 100db siren
• Two-way audio and 30m night vision
• View anywhere and anytime through the app
• Multiple recording options – local (up to 128gb MicroSD), EZVIZ cloud or EZVIZ NVR
• IP66 weatherproof design
• 1080P Full HD Video: Enjoy high definition video and a wide-angle lens for clearer and sharper details over a larger area
• See in perfect detail with a built-in Digital HDR, it balances colours and light to match real life
• Securely broadcast with H.264 compression to optimize bandwidth usage on your network
• To view playbacks, you have to have a hard drive connected.
• Warranty: 12 Months

Product Specifications

• Model: CS-TY1-B0-1G2WF
• Dimensions: 118.7 x 88mm

Camera

• Image Sensor 1/3" Progressive Scan CMOS
• Shutter Speed Self-adaptive shutter
• Lens 4mm@ F2.4, view angle: 85° diagonal, 75° horizontal, 45° vertical
• Lens Mount M12
• Day & Night IR-cut filter with auto-switching
• DNR 3D DNR
• WDR Digital WDR

Compression

• Video Compression H.264
• Video Bit Rate Adaptive bit rate.


• Max. Resolution 1920 x 1080
• Frame Rate Max:15fps; Self-Adaptive during network transmission

Network

• Smart Alarm Motion detection
• Wi-Fi Pairing AP pairing
• Protocol EZVIZ Cloud proprietary protocol
• Interface Protocol EZVIZ Cloud proprietary protocol

Wi-Fi

• Standard IEEE802.11b/g/n
• Frequency Range 2.4 GHz ~ 2.4835 GHz
• Channel Bandwidth Supports 20MHz
• Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
• Transmission Rate 11b: 11Mbps, 11g: 54Mbps, 11n: 72Mbps

General

• Power Supply DC 5V/1A
• Power Consumption 5W max
• IR Range MAX. 10 meters (32.81 ft.)
• Dimensions 88 x 88 x 118.7 mm (3.46 x 3.46 x 4.67 inch)
• Packaging Dimensions 103 x 103 x 186 mm (4.06 x 4.06 x 7.32 inch)
• Net Weight 259g (9.14oz)

HDD

• Type One Built-in SATA port
• Capability Supports 1TB to 6TB 3.5inch HDD

Interface

• Storage MicroSD card slot (Max. 256GB) not included
• Power Micro USB
• Wired Network RJ45 X 1 (10M/100M self-adaptive Ethernet port)
