UNI-THeavy Duty Thermal Camera (Model: UTi85A)

About

UTi85A is a rugged and ergonomically designed thermal camera. It is powerful, user friendly, and with great performance. UTi85A can automatically track the objective’s temperature from -10℃~400℃. It is an economical professional troubleshooting tool, widely used in many applications.

Product Features

• Durable and user-friendly
• 2.8” TFT display screen (320×240 Pixels)
• IR resolution: 80×60
• Temperature measurement range: -10℃ to 400℃ / 14℉ to 752 ℉
• Auto alarm for high/low temperature
• Auto tracking for hot spot/cold spot
• Image capture
• Color palettes: 5(White hot, Red hot, Ice blue, Rainbow, Ironbow)
• LED flashlight
• PC software analysis
• Rechargeable Li-ion battery
• 1/4” tripod mounting hole
• IP65
• 2m drop proof

Applications

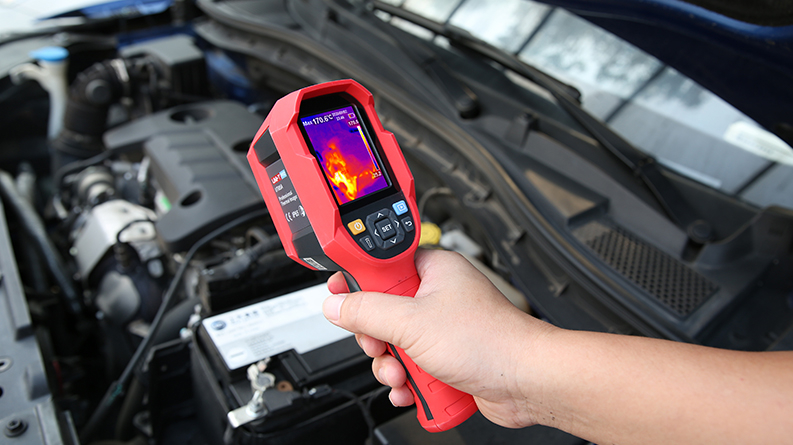

• Automotive Maintenance

• Pipeline Inspection
• Electricity Inspection
• HVAC Inspection
• PCBA Inspection
• Motor inspection
• Solar panel inspection
• Power distribution cabinet inspection
• Mechanical equipment inspection
• Heating equipment inspection

Product Specifications

• IR resolution (Pixels) 80×60
• Display 2.8” TFT LCD (320×240)
• Field of view(FOV) 51°×38°
• Thermal sensitivity(NETD) ≤150mK
• Spatial resolution(IFOV) 11.1mrad
• Frame rate ≤9Hz
• Spectral range 8~14µm
• Focus Focus Free
• Temperature measurement range -10℃~400℃
• Accuracy ±2℃ or ±2% whichever is greater
• Emissivity 0.01~1.00 adjustable (0.95 default)
• Color palettes 5
• (White hot, Red hot, Ice blue, Rainbow, Ironbow)
• Image modes Thermal
• Hi/Lo temperature alarm Icon,LED flashlight
• Battery Fixed Li-ion battery (3.6V 5000mAh)
• Battery operation time ≥ 6 hours
• USB Type-C
• IP rating IP65
• Drop proof 2m
• Storage Up to 32GB Micro SD card
• Image/Video storage format BMP
• Certificates CE,FCC,RoHS
• Product net weight 490g
• Product size 236mm×75.5mm×86mm
