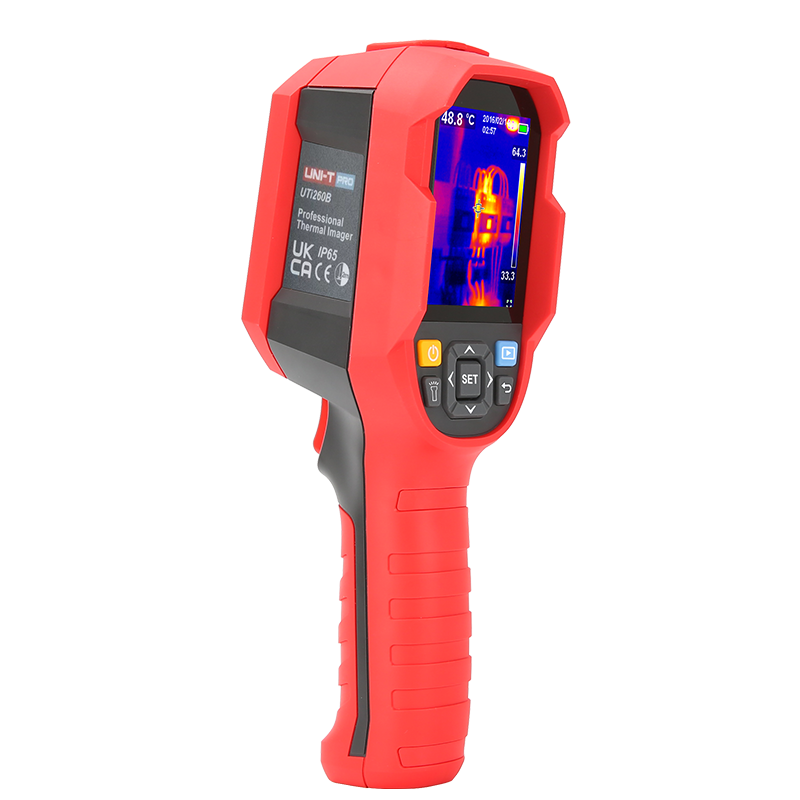

UNI-THeavy Duty Thermal Camera (Model: UTi160B)

About

UTi260B is a featured product of UNI-T heavy duty series thermal cameras. It is cost effective and with a wide temperature range: - 20℃~550℃. It has higher IR resolution: 256×192 pixels, than other models, and includes 7 color palettes and four display modes: thermal, visual image, fusion, and picture in picture. It is also user friendly and rugged enough to pass IP65 and 2m drop test.

Applications of UTi260B

• PCBA inspection
• Motor inspection
• Automotive maintenance
• Solar panel inspection
• Power distribution cabinet inspection
• Electricity facilities inspection
• Mechanical equipment inspection
• Heating equipment inspection
• Building & HVAC inspection etc.

Product Specifications

• IR resolution (Pixels) 256×192
• Display 2.8” TFT LCD (320×240)
• Field of view(FOV) 56°×42°
• Thermal sensitivity(NETD) ≤50mK
• Spatial resolution(IFOV) 3.8mrad
• Spectral range 8~14µm
• Temperature measurement range -20℃~550℃
• Accuracy ±2℃ or ±2% whichever is greater
• Emissivity 0.01~1.00 adjustable (0.95 default)
• Color palettes 7 (White hot, Black hot, Red hot, Ironbow, Lava, Rainbow, Rainbow HC)
• Image modes Thermal,Visual image,Fusion,PIP
• On screen analyzer 3 Points
• Digital camera resolution 640×480
• Hi/Lo temperature alarm Icon,LED flashlight
• PC software analysis √
• Battery Fixed Li-ion battery (3.6V 5000mAh)
• Battery operation time ≥ 6 hours
• USB Type-C
• IP rating IP65
• Drop proof 2m
• Storage Up to 32GB Micro SD card
• Image/Video storage format BMP
• Certificates CE,FCC,RoHS
• Product net weight 490g
• Product size 236mm×75.5mm×86mm
