Huawei5-15KW Luna ESS Power Module and 5KWh HV Luna Extension Lithium Battery Module (Model:LUNA2000-5-C0 and LUNA2000-5kW-E0)

Please Note:

• Power module only, battery sold separately.
• Requires installation be a Huawei preferred installer or a qualified electrician with a Wire Man's licence, who must supply a Certificate of Compliance after installation. Failure to provide the mentioned certificate of compliance and installation details may result in the voiding of your warranty
• The Luna Power Module only works with the Luna Battery Module, these 2 combined to be the back up power source for the Fusion Inverters

About

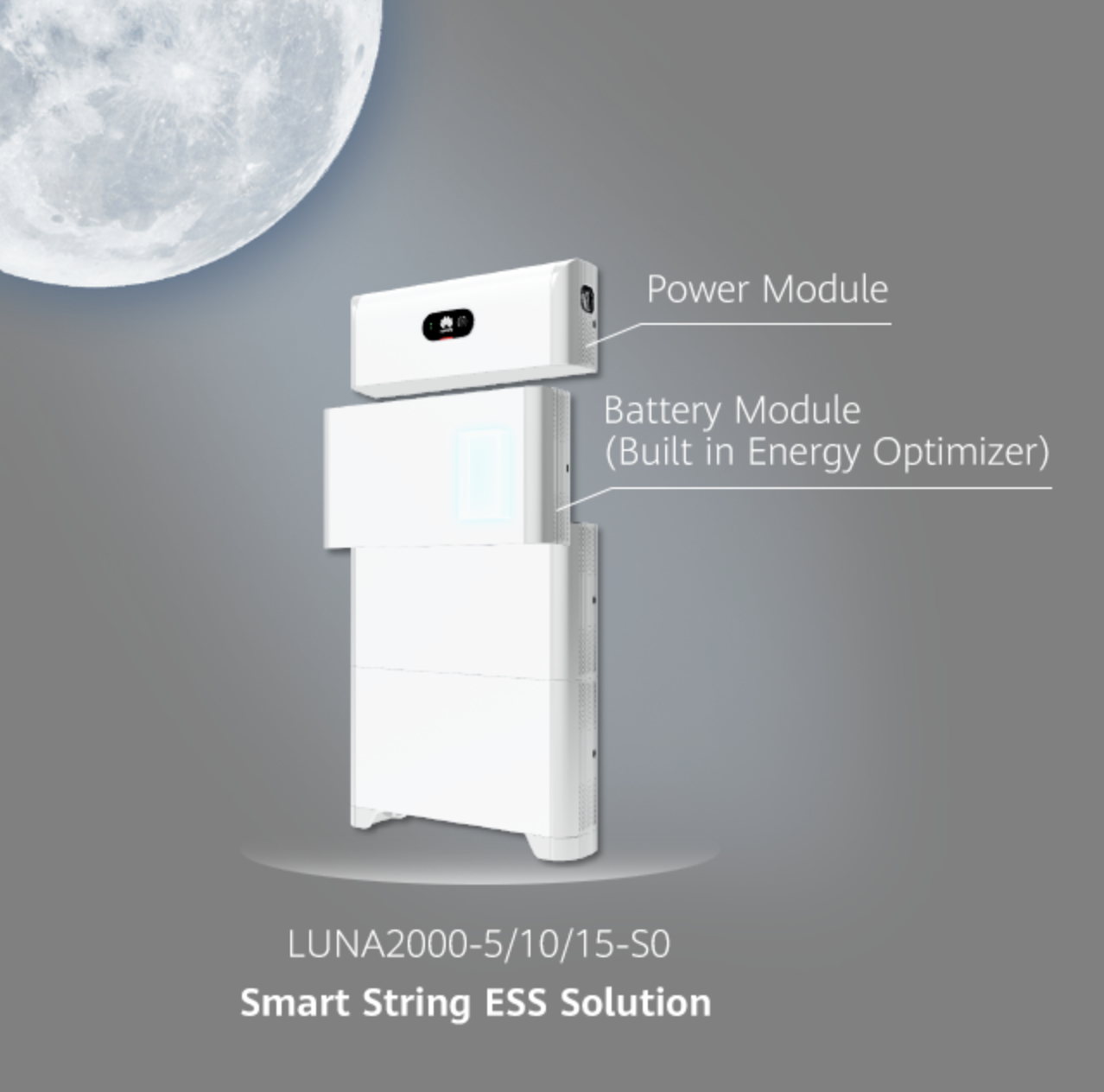

5-15KW Luna ESS Power Module

Never be left in the dark again!

The Huawei LUNA 2000-15 15kWh lithium solar battery storage is an energy storage solution with long life and a storage capacity of 15kWh. The modular solution can grow with the needs of any household from 5kWh to 15kWh and significantly reduce electricity charges thanks to achievable energy self-reliance of up to 90 percent.

This new Huawei battery will allow for parallel connection of up to 30kWh thanks to its modular design of 5kWh in its different models of 5, 10 and 15kWh. allowing homeowners to improve their energy self-consumption and save on their energy bills.
Highlights of the 15kWh system

Huawei LUNA 2000 Solar Battery Storage, with a storage capacity ranging from 5 to 15kWh.
This new line, available in power ratings of 5 and 15kW, has one of the industry’s highest energy efficiency rates, providing up to 10% more energy than lower voltage battery systems. The design flexibility of the Huawei 15kWh battery storage.

The different set-up configurations available allow maximum installation flexibility and optimization of available spaces. Quick and easy to install thanks to the simple plug-and-play connection, both on the inverter and battery side. Future-proof technology enables a full smart home experience with advanced communication features and load management capabilities. The embedded features allow customers to monitor and keep their system under control through the dedicated mobile app.

5KWh HV Luna Battery Module

The Huawei LUNA 2000-5 5kWh lithium solar battery storage is an energy storage solution which includes a high-voltage Li-ion battery with a long life and a storage capacity of 5kWh. The modular solution can grow with the needs of any household from 5kWh to 15kWh and significantly reduce electricity charges thanks to an achievable energy self-reliance of up to 90 percent.

This new Huawei battery will allow for parallel connection of up to 30kWh thanks to its modular design of 5kWh in its different models of 5, 10 and 15kWh. allowing homeowners to improve their energy self-consumption and save on their energy bills.

The different set-up configurations available allow maximum installation flexibility and optimization of available spaces. Quick and easy to install thanks to the simple plug and play connection, both on inverter and battery side.

Future proof technology enables a full smart home experience with advanced communication features and load management capabilities. The embedded features allows customers to monitor and keep their system under control through the dedicated mobile app.

Product Features

5-15KW Luna ESS Power Module

• Flexible – can be easy scaled from 5KWh to 30KWh

• 100% DOD pack level energy optimization

• easy to install due to 12Kg power module and 50Kg battery module

• lithium Iron Phosphate cells result is safe and reliable battery

• Auto Detected by battery

• Compatible with single and 3 Phase inverters

• battery fault on module auto isolates to keep system safe

• battery module is 10 KWh per battery

• this consists of 2 x battery modules and 1 x power module

• nominal voltage of battery is 600VDC

• max output per module is 2500W

• 10 year warranty

• max is 2 x systems in parallel

• RS485 BMS communication

• Rated IP66

• Smart connectivity
• For more info click here

5KWh HV Luna Battery Module

• Flexible – can be easy scaled from 5KWh to 30KWh when more batteries are added
• 100% DOD pack level energy optimization
• Easy to install due to 12Kg power module and 50Kg battery module
• Lithium Iron Phosphate cells resulting is safe and reliable battery
• Auto Detected by battery
• Compatible with single and 3 Phase inverters
• Battery fault on module auto isolates to keep system safe
• Battery module is 10 KWh per battery
• Consists of 2 x battery modules and 1 x power module
• Nominal voltage of battery is 600VDC
• Max output per module is 2500W
• 10-year warranty
• Max is 2 x systems in parallel
• RS485 BMS communication
• Rated IP66
• This new line, available in power ratings of 5 and 15kW, has one of the industry’s highest energy efficiency rates, providing up to 10% more energy than lower voltage battery systems.
