Sunell2MP PoE PTZ Mini Surveillance Camera (Model: CAM-IPV57-02GDR-Z)

About

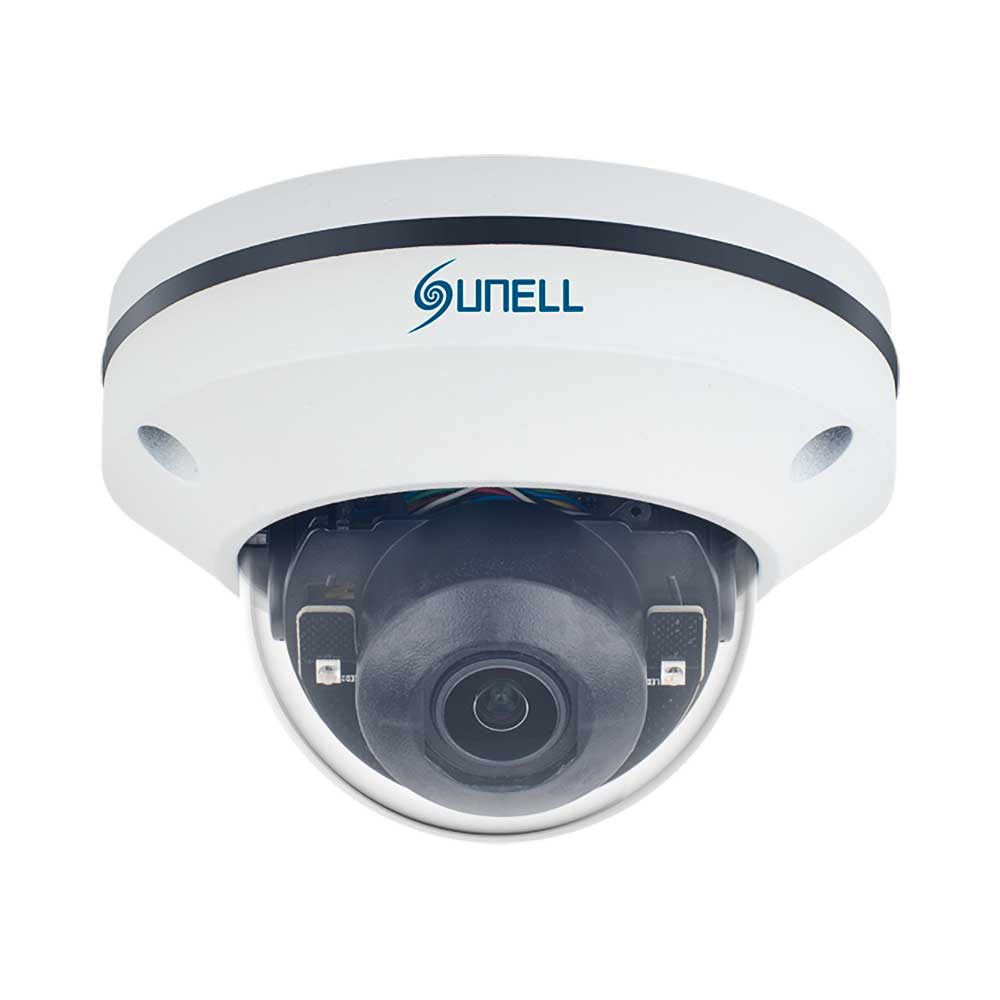

Sunell 2 MP IP PoE PTZ Mini Dome Camera (IPV57/02GDR/Z) is a compact motorized PTZ (pan-tilt-zoom) dome camera offering high-definition surveillance with flexible zoom and movement, making it ideal for areas that require versatile coverage and monitoring.

Product Features

• 2 MP Full HD (1920 x 1080) resolution with 25/30 fps
• Motorized zoom lens (2.8–8 mm) for flexible field-of-view adjustment
• Triple-stream capability for optimized recording and bandwidth use
• Smart infrared (IR) night vision up to 20 m
• Excellent low-light performance with low bitrate streaming
• Advanced image enhancements: WDR, 3D DNR, ROI, defog, HLC, corridor mode, DIS
• Robust IP66-rated weatherproof housing for outdoor reliability

Product Specifications

• Image Sensor: 1/2.8″ Progressive Scan CMOS
• Maximum Resolution & Frame Rate: 2 MP (1920 × 1080) at 25/30 fps
• Lens: Motorized zoom, 2.8–8 mm, fixed iris, F1.6
• Angle of View: Approximately 103.5°–50°
• Minimum Focus Distance: 0.2 m
• IR Night Vision: Smart IR up to 20 m (3 IR LEDs)
• Compression Formats: H.265, H.264, MJPEG
• Streaming: Triple streams - Stream1: up to 1080p; Stream2 & Stream3: lower resolutions (D1, VGA, CIF, QVGA)
• Bit Rate Control: CBR/VBR; Stream1: 500 kbps–12,000 kbps; Stream2: 100 kbps–6,000 kbps; Stream3: 100 kbps–3,000 kbps
• Pan / Tilt Range: Pan: 0°–350°; Tilt: 0°–90°
• PTZ Speed: 0.1°–120°/s (both pan & tilt)
• Day/Night: IR Cut Filter Removal (ICR) for day/night functionality
• Image Enhancements: WDR (96 dB), HLC, defog, 2D/3D DNR, DIS, ROI, corridor mode, mirror, motion detection, privacy masking
• Network Protocols: IPv4/IPv6, 802.1x, HTTP(S), TCP/IP, UDP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP; ONVIF compliant; supports up to 10 simultaneous users; browser access via IE11, Chrome, Firefox; mobile support (iOS, Android)
• Analytics (IVS): Perimeter protection, single/double virtual fences, loitering detection, object left/removed, abnormal speed, converse, illegal parking, signal loss alerts
• Power Supply: Power over Ethernet (PoE) or 12 V DC; Power Draw: ~2 W (IR off), ~4.5 W (IR on)
• Environmental Ratings: Operating Temp: −30 °C to 50 °C; Humidity: up to 90% RH
• Ingress Protection: IP66 (dust and water resistant)
• Build: Metal housing; Dimensions: Ø105 × 73 mm; Net Weight: ~450 g
• Certifications: CE / FCC
• Warranty: 6 Months

What's in the box?

• 1x Sunell 2 MP IP PoE PTZ Mini Dome Camera (IPV57/02GDR/Z)
• Mounting hardware (screws, brackets, anchors)
• Quick start guide / user manual
• Warranty documentation
