Major Tech10W SMD LED Mini Floodlights
R49
About

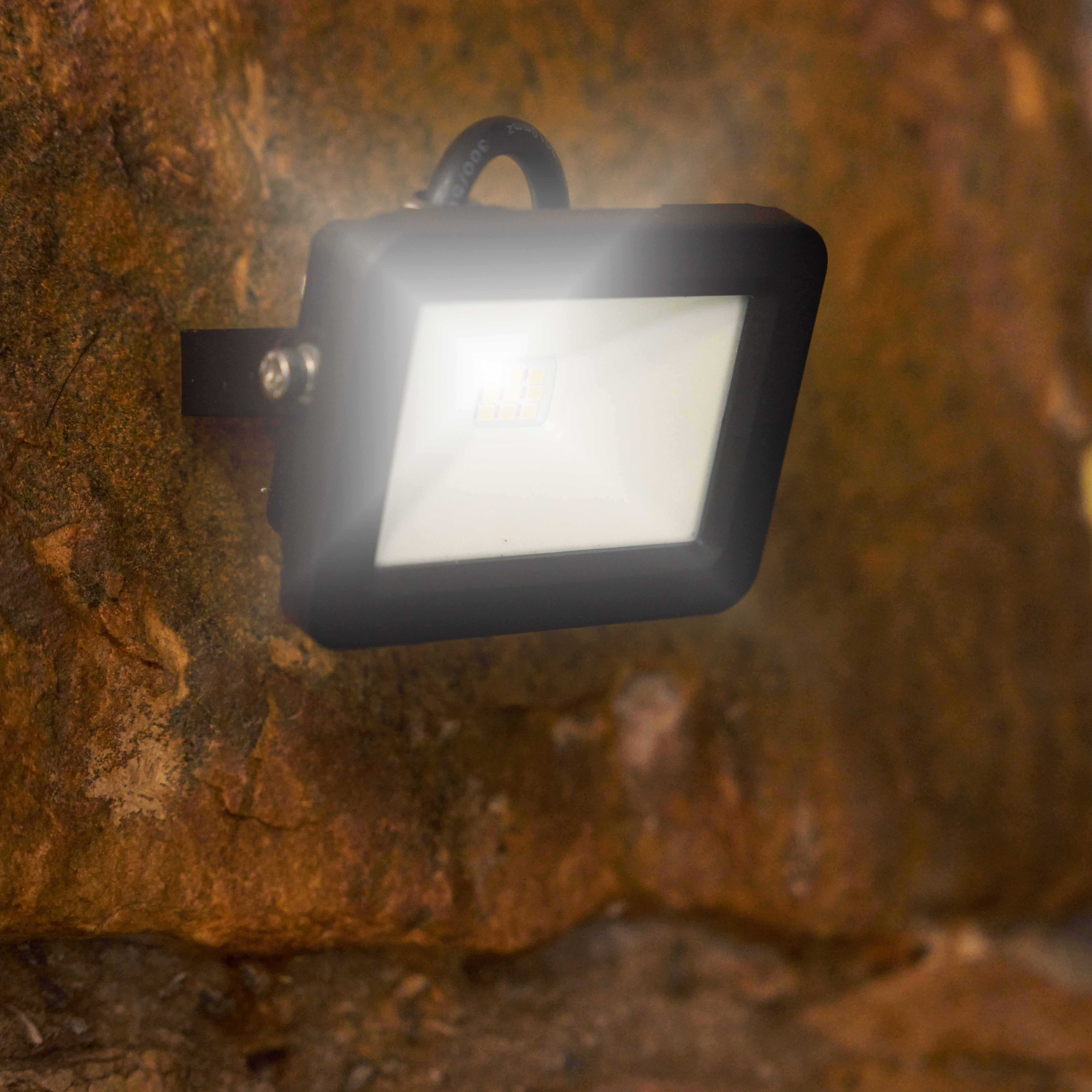

These 10W IP65 LED floodlights have high-power SMD Chips capable of producing >800Lm and are designed as a replacement for traditional floodlights.
The glass cover is 4mm strengthened clear glass which is fully waterproof and resistant to all environmental factors. The light source inside is made up of multiple high power SMD LED's which are directly connected with the aluminium shell. The premium quality aluminium body which is incredibly corrosion resistant makes it easy to maintain and clean.
The design ensures very low heat emissions and has a much longer lifespan. The LFB-10NWC offers a natural white light for improved visibility and can be mounted vertically or horizontally. Say goodbye to the bulky floodlights and welcome the new, modern, slimline, stylish floodlight designed for today's consumer who wants to be set apart from the rest.
Product Features
Die-cast aluminium body
- Durable material for all weather conditions
- Resistant to rust and other harmful elements
- Aluminium provides good heat dissipation for thermal applications and ensures a longer lifespan
- Super bright illumination
- Perfect for outdoor use
- Cost-efficient and easy to adjust and use
- Environmentally friendly
- The bracket can be mounted vertically or horizontally
- An adjustable stand lets you aim light at different angles
- Supplied with 30cm cable
- Ensure main supply is switched off or disconnect the power before installation
- Remove the bracket from the floodlight for ease of installation
- Drill 2 holes, place the bracket over the holes and screw into the wall
- Reconnect the floodlight to the bracket using the same connections as provided when the light is removed from the packaging
- Connect the brown and blue wires respectively to the mains 'live' and 'neutral', and connect the yellow and green wires to the earth
- Confirm connection once installed
- Make sure the power is off before doing any maintenance work
- Clean glass regularly to keep the light output at its best
- Use dry cloth to wipe down housing and keep clean
Product Specifications
- Commodity: LED Floodlight
- Model No.: LFB-10NWC
- Input Voltage: AC 220V-240V
- LED Type: SMD LED
- Wattage: 10W
- Lumen: 800 Lumens
- Power Factor: >0.9
- Frequency: 50/60Hz
- Waterproof Degree: IP65
- Beam Angle: 120
- Material: Aluminium + Toughened Glass
- Body Size: 97mm x 91.3mm x 30.5mm
- Weight: 0.26kg
- Lifespan: 25 000 hours
- Certification: IEC 60598-2-5 ROHS
